Modified 130 Head (CR) Safety Force Design | Bucca Wauka, NSW
This yard system design is a modified version of our 130 Head (CR) Safety Force Design. It has a total yard area of 523m sq.
Yard Components Included (all manufactured in Australian First Garde Steel - galvanised inside and outside with the highest gal coating for this type of steel on the Australian market:
5 rail panels - 2.5m long x 1.7m high (115mm x 42mm rail).
5 rail gates in frames - 2.5m long x 2.2m high frames (115mm x 42mm rail)
Our low noise cleating system.
Panel pins.
Foot pins.

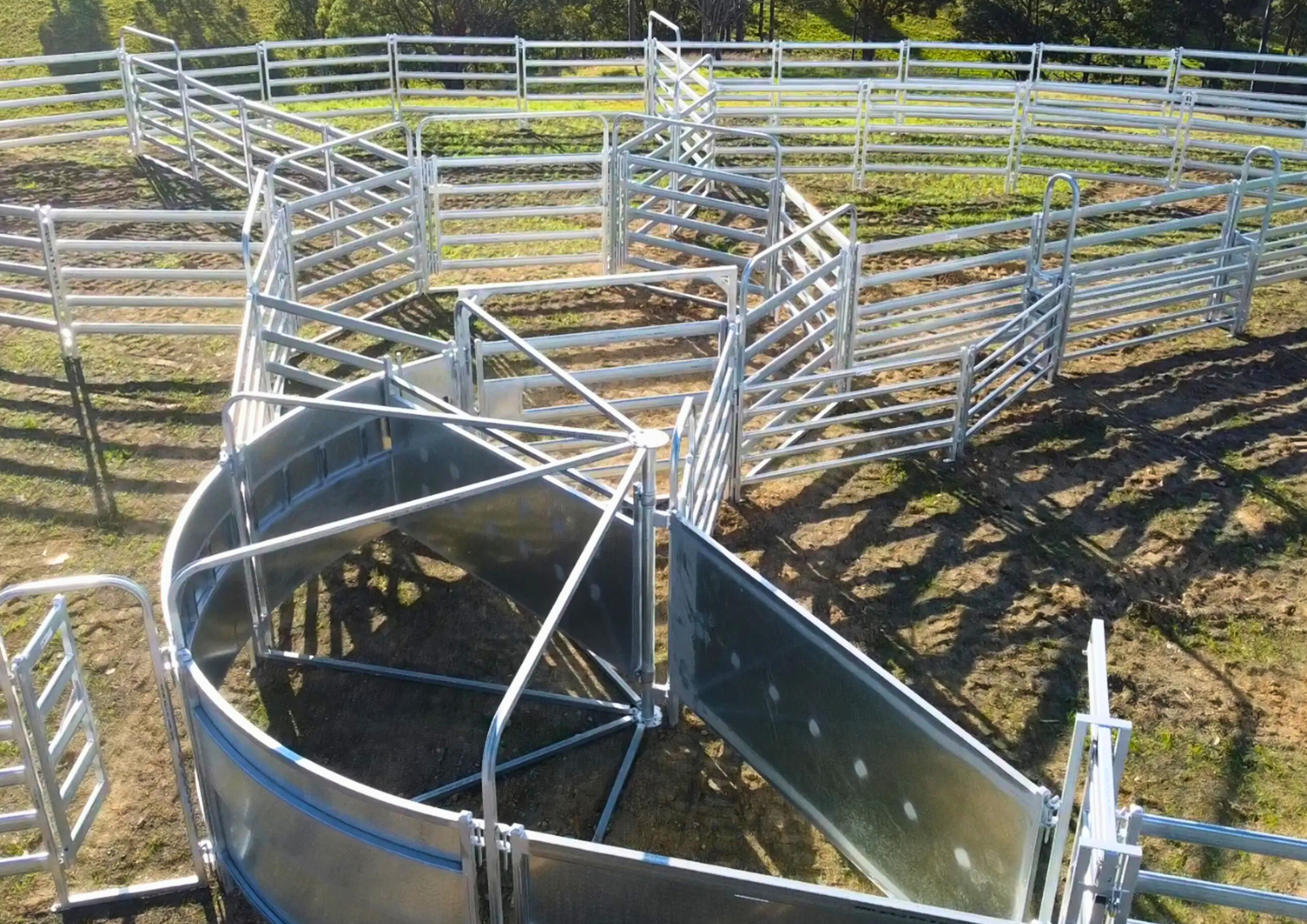

Four Section Curved Force Yard with Ratcheting Safety Gate.
Panels, double hinge gates, double hinge lock-up gates in the drafting pound, single hinge gates and slide gates.
Calf Race.
Yard Upgrades:
Upgraded panel posts from 1.6mm to 2.5mm thick material.
An additional slide gate in the race, one section back from the crush.
Upgraded gate on the rear of the force, to a single hinge gate and heavy-duty frame with a spring slam catch.
Three way drafting section at the front of the crush (two connected gates (connected overhead) on hinges with tension adjustment, on permanent posts with a heavy duty drop bolt).
Ramp:
3.6m Timber Floor Loading Ramp complete with:
Hardwood timber floor.
Ramp sides sheets up to 600mm.
Ramp side rails - 115mmx42mm rail
Heavy-duty front buffer.
Double width walkway and handrail on one side.
Heavy-duty construction overall.
Crush:
CIA Stockman Pro-Chute Crush complete with:
Full walk-through Mk 5 Headbail sheeted to eliminate leg injury.
Two hinged gates fitted into the top split gate on working side.
Full exit gates split horizontally on working side.
Front and rear Operation
Yellow handles for operators’ visibility
Full walk-through vet section
One-sided parallel sided squeeze
Anti-Backing System
¾ sheeted rear door
Grease nipples on pivot points
Weigh bar mounting plates.
