180 Head Weean Design | Cobar, NSW

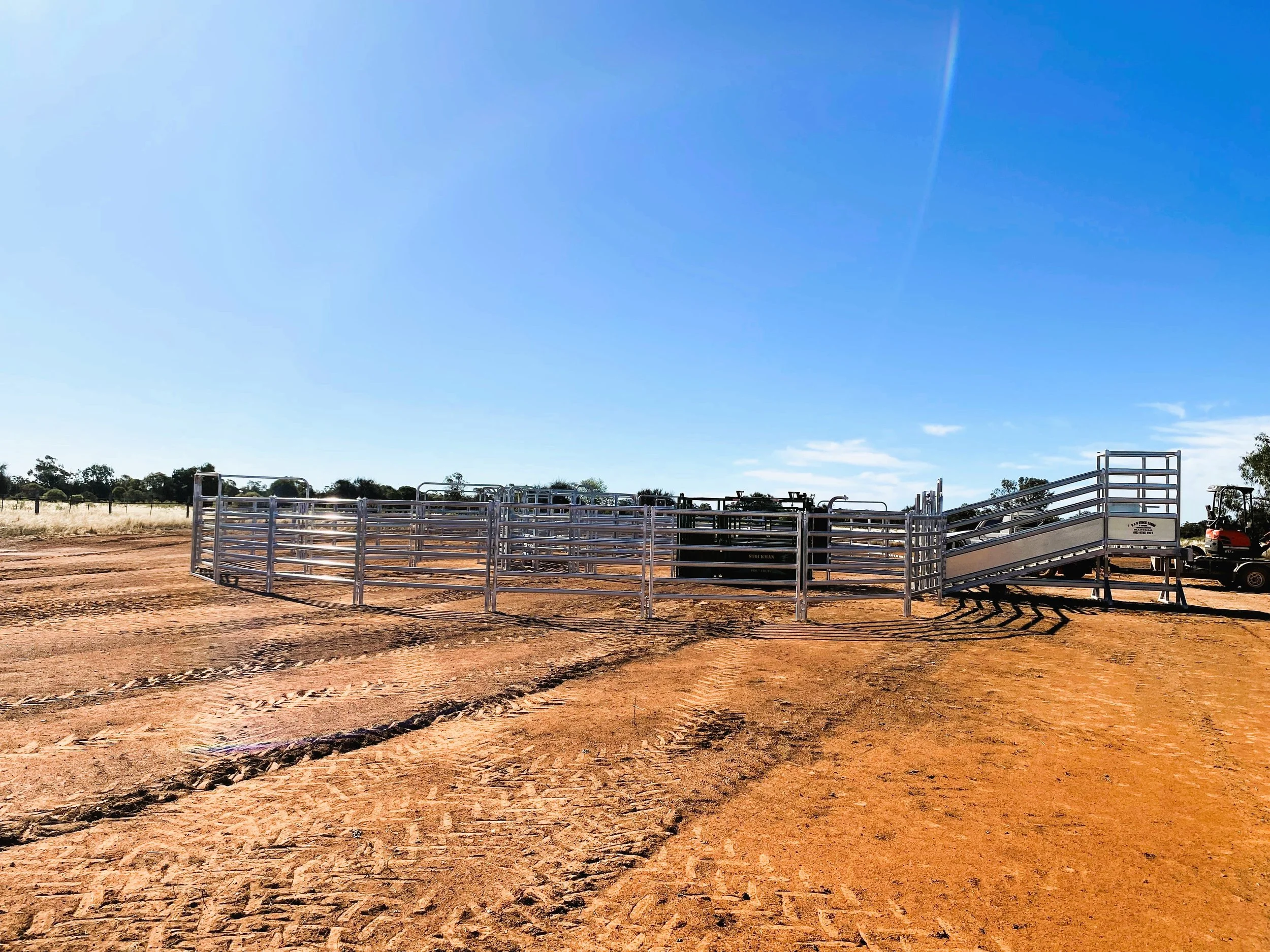

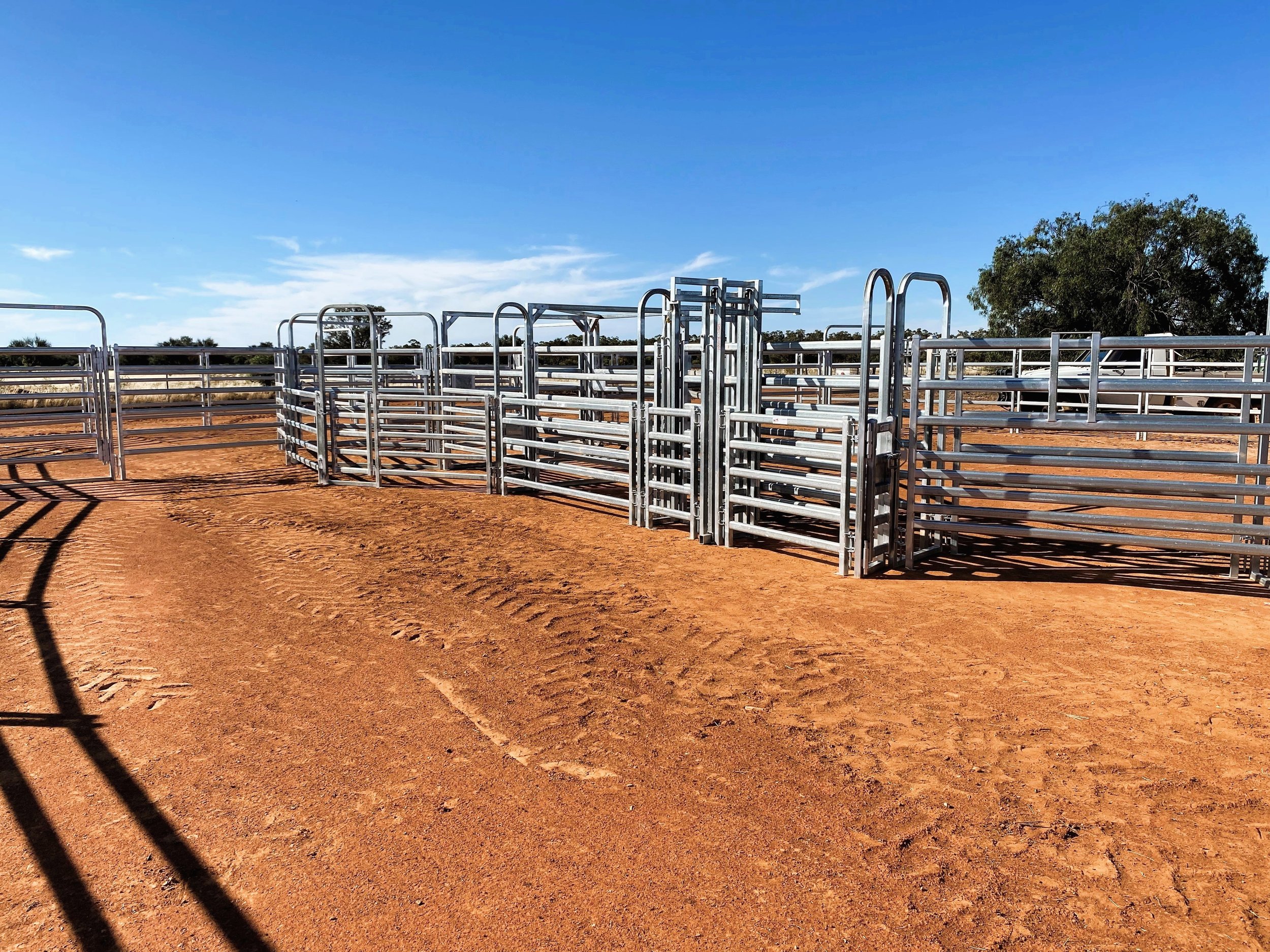

This yard system has a total yard area of 472m sq. It has a working capacity of 180 head and a holding capacity of 350 head.

• Yard Components Included (all manufactured in Australian First Grade Steel - galvanised inside and outside with the highest gal coating for this type of steel on the Australian market:

  • 6 Rail Panels - 2.5m long - 1.7m high (75 x 40 rail).

  • 6 Rail Gates in frames - 2.5m long - 2.2m high frames (75 x 40 rail).

  • Our low noise cleating system.

  • Panel pins.

  • Foot pins.

  • Calf Race.

  • Panels, double hinge gates, double hinge lock-up gates in the drafting pound, single hinge gates, slide gates.

• Yard Upgrades:

  • Upgraded panel posts from 1.6mm to 2.5mm thick material.

  • Upgraded gate on the rear of the force, to a single hinge gate and heavy-duty frame with a spring slam catch.

  • Three way drafting section at the front of the crush (two connected gates (connected overhead) on hinges with tension adjustment, on permanent posts with a heavy duty drop bolt).

• Ramp:

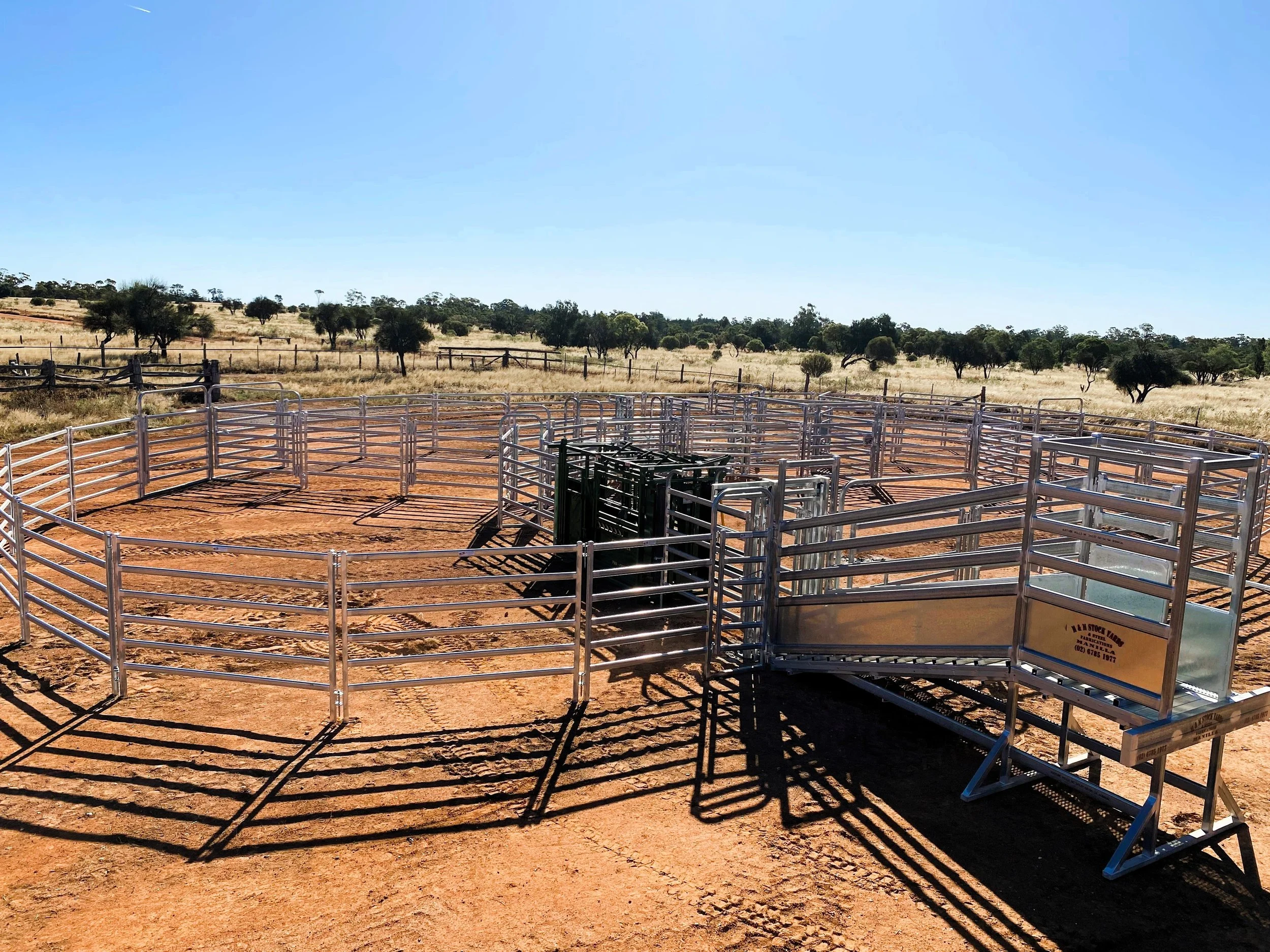

  • 5.0m Steel Floor Loading Ramp complete with:

    • Steel floor.

    • 1.4m flat load out section with access door.

    • Ramp sides sheets up to 600mm.

    • Ramp side rails - 115mmx42mm rail

    • Heavy-duty front buffer.

    • Double width walkway and handrail on one side.

    • Heavy-duty construction overall.

• Crush:

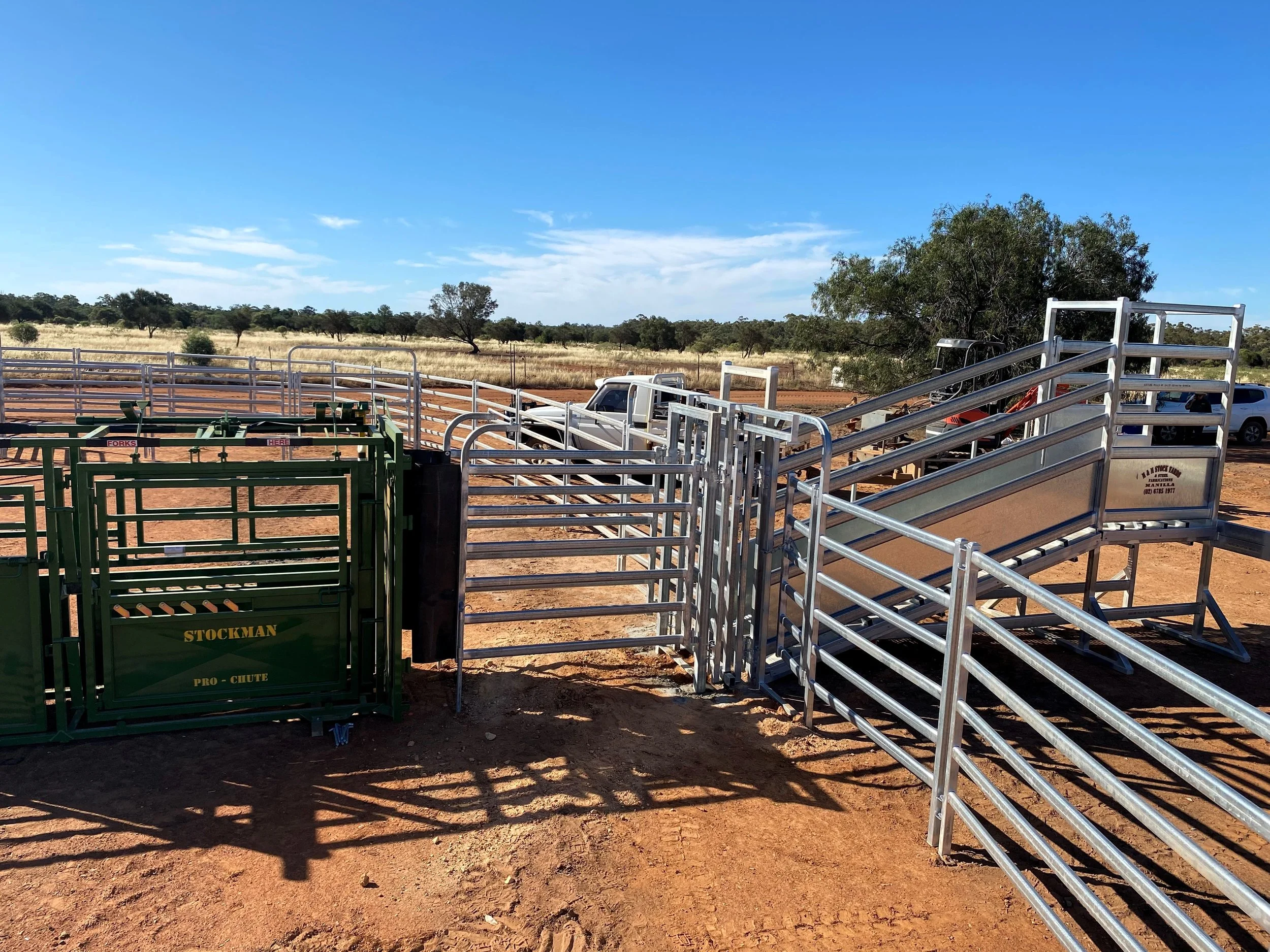

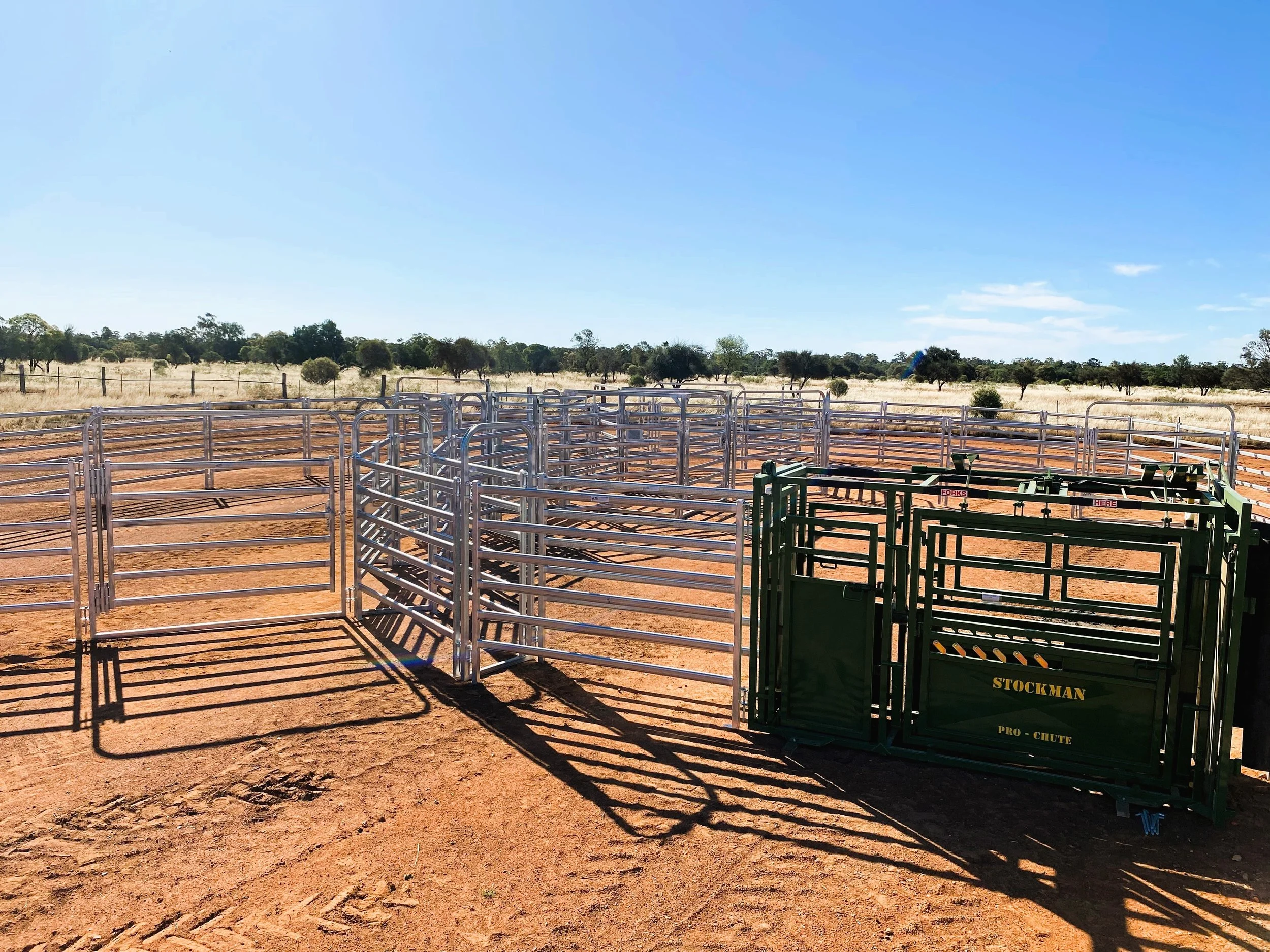

  • CIA Stockman Pro-Chute Crush complete with:

    • Full walk-through Mk 5 Headbail sheeted to eliminate leg injury.

    • Two hinged gates fitted into the top split gate on working side.

    • Full exit gates split horizontally on working side.

    • Front and rear operation

    • Yellow handles for operators’ visibility

    • Full walk-through vet section

    • One-sided parallel sided squeeze

    • Anti-Backing System

    • ¾ sheeted rear door

    • Grease nipples on pivot points

    • Weigh bar mounting plates.
