Custom 500 Head (HSR) Safety Force Design | Goondiwindi, QLD

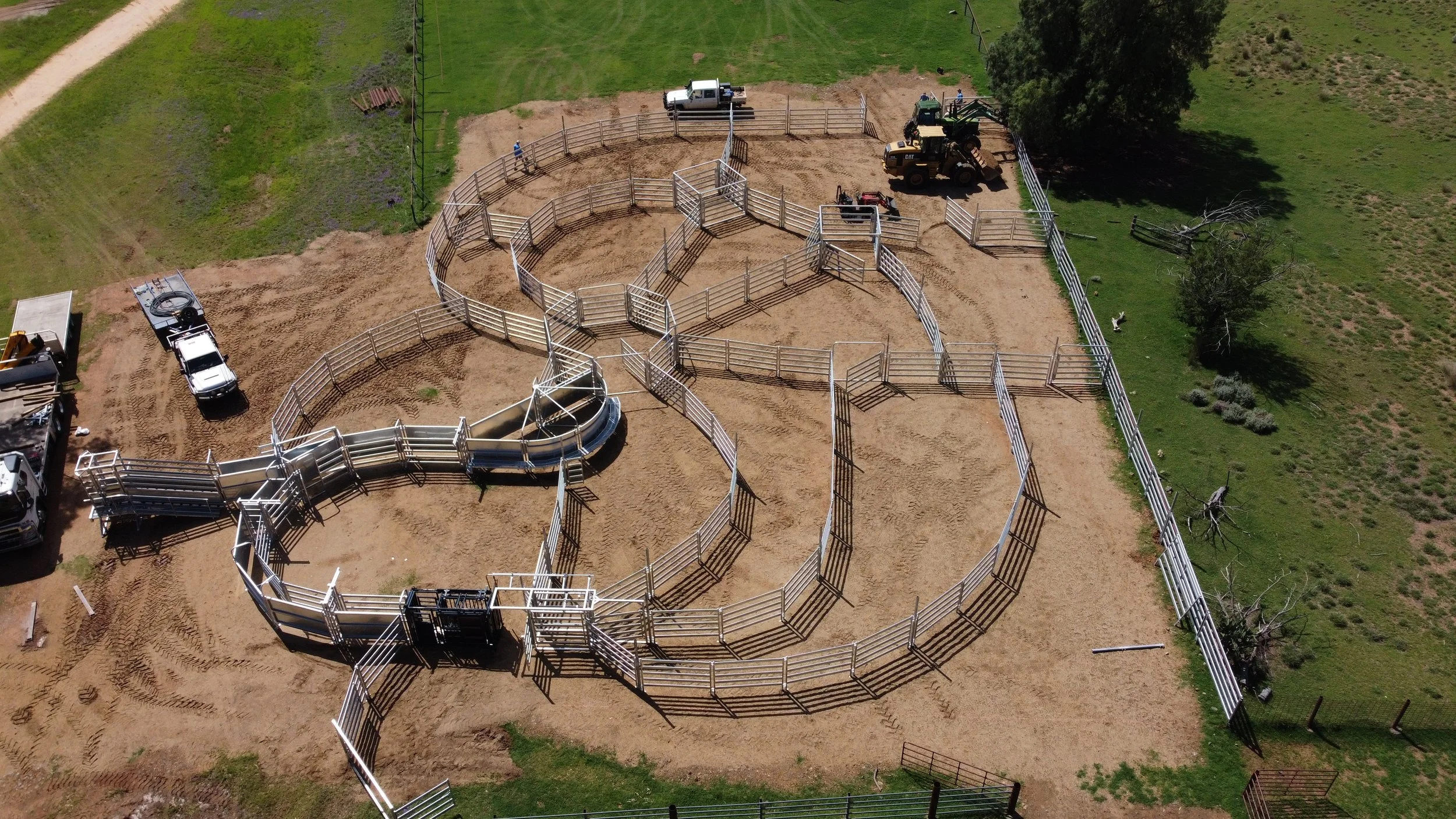

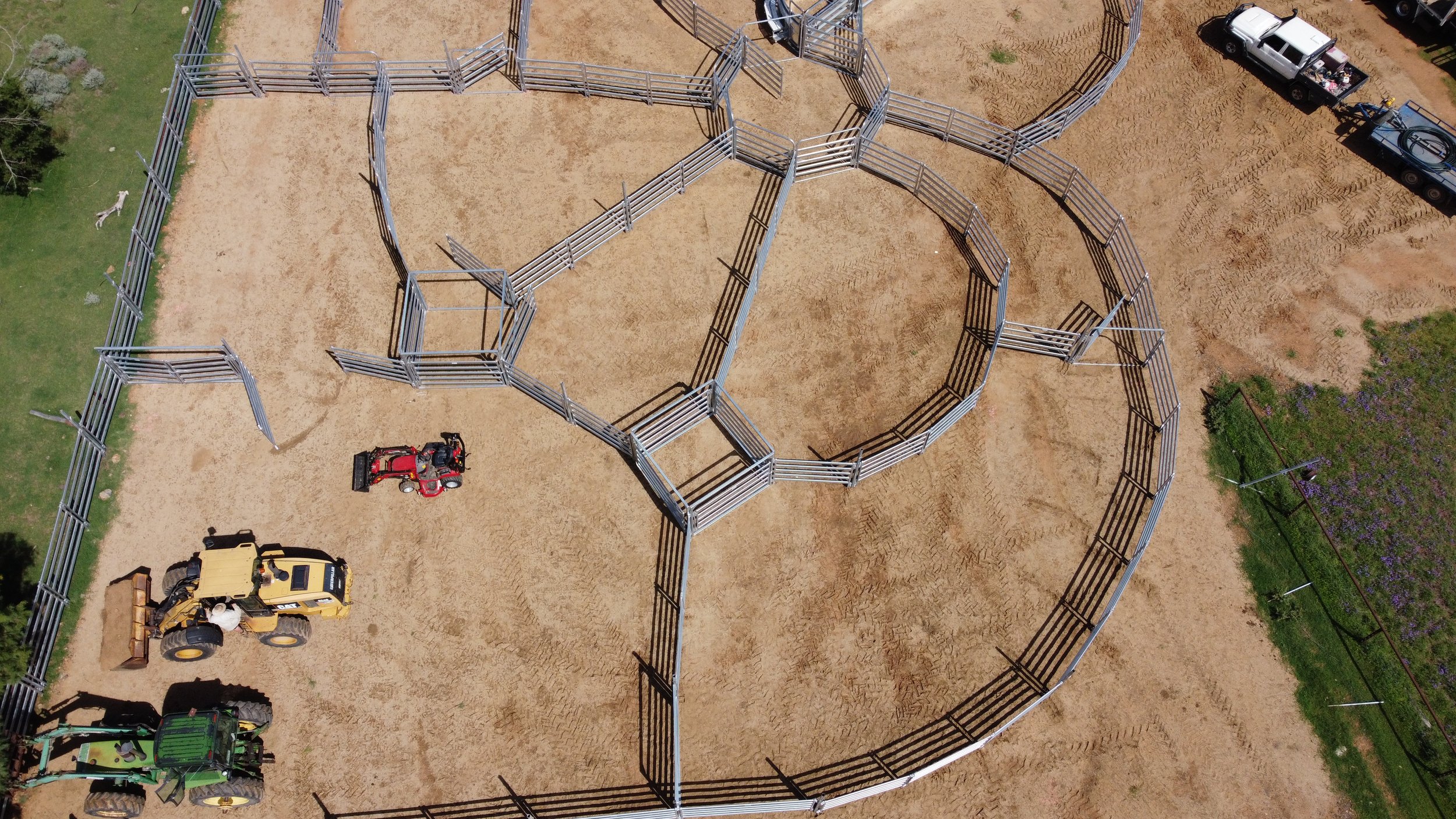

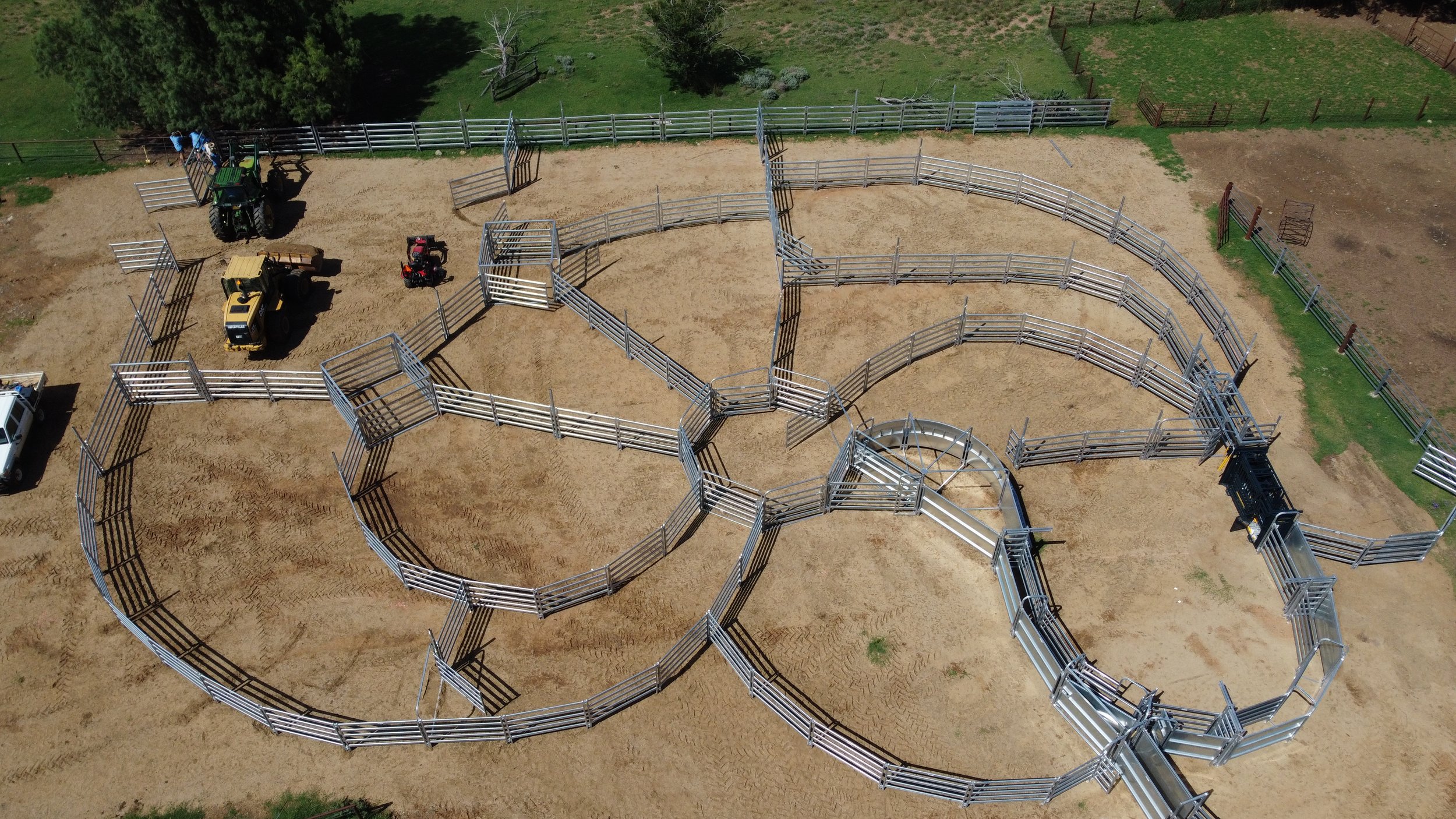

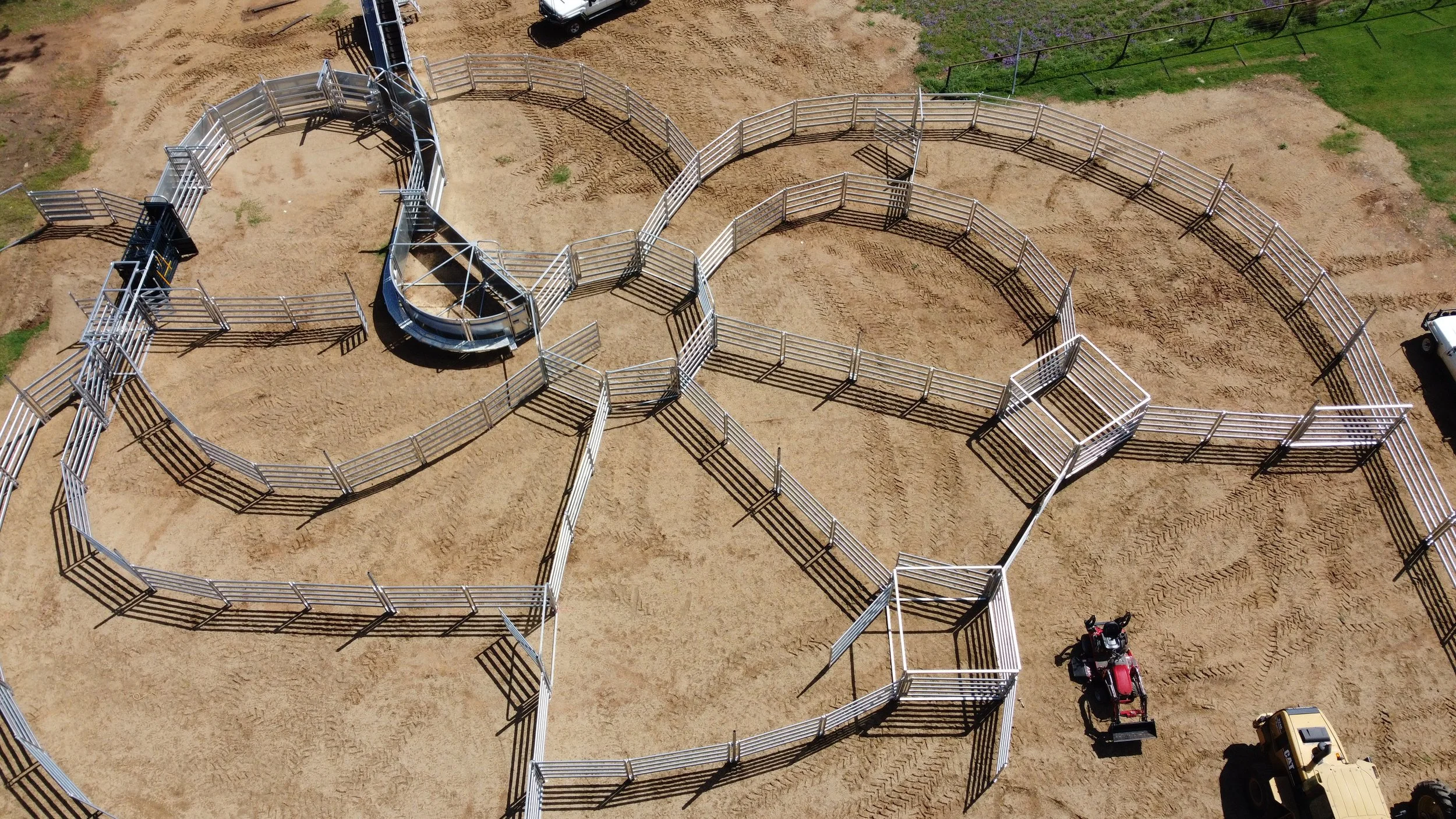

This custom yard system design has a total yard area of 1560m².

• Yard Components Included (all manufactured in Australian First Grade Steel - galvanised inside and outside with the highest gal coating for this type of steel on the Australian market:

  • 5 rail panels - 2.5m long x 1.7m high (115mm x 42mm rail).

  • 5 rail gates in frames - 2.5m long x 2.2m high frames (115mm x 42mm rail)

  • Our low noise cleating system.

  • Panel pins.

  • Foot pins.

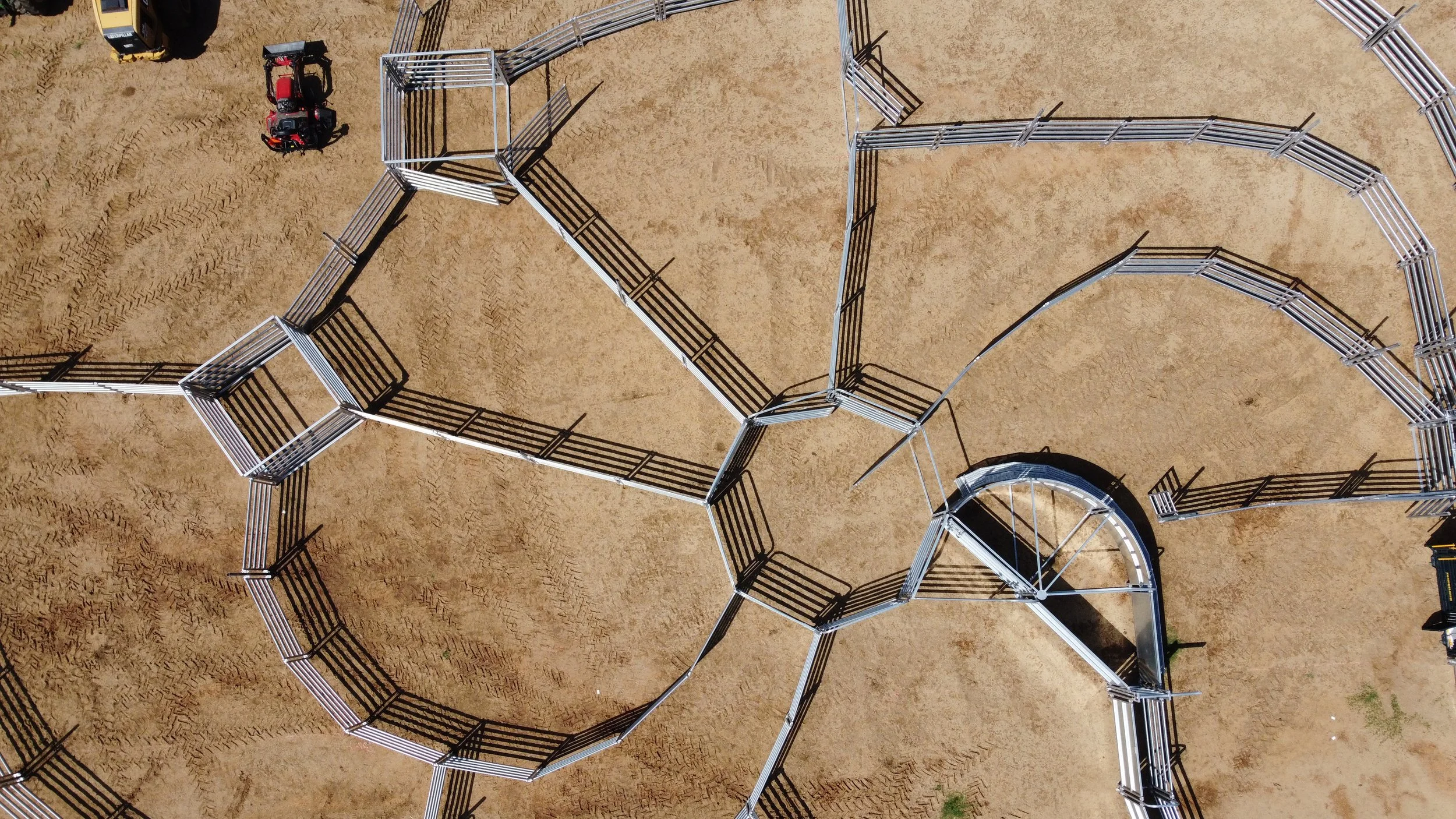

  • Four Section Curved Force Yard with Ratcheting Safety Gate.

  • Panels, double hinge gates, double hinge lock-up gates in the drafting pound, single hinge gates and slide gates.

• Yard Upgrades:

  • Upgraded panel posts from 1.6mm to 2.5mm thick material.

  • An additional slide gate in the race, one section back from the crush.

  • Upgraded gate on the rear of the force, to a single hinge gate and heavy-duty frame with a spring slam catch.

  • Four way drafting section at the front of the crush (two connected gates (connected overhead) on hinges with tension adjustment, on permanent posts with a heavy duty drop bolt).

• Ramp:

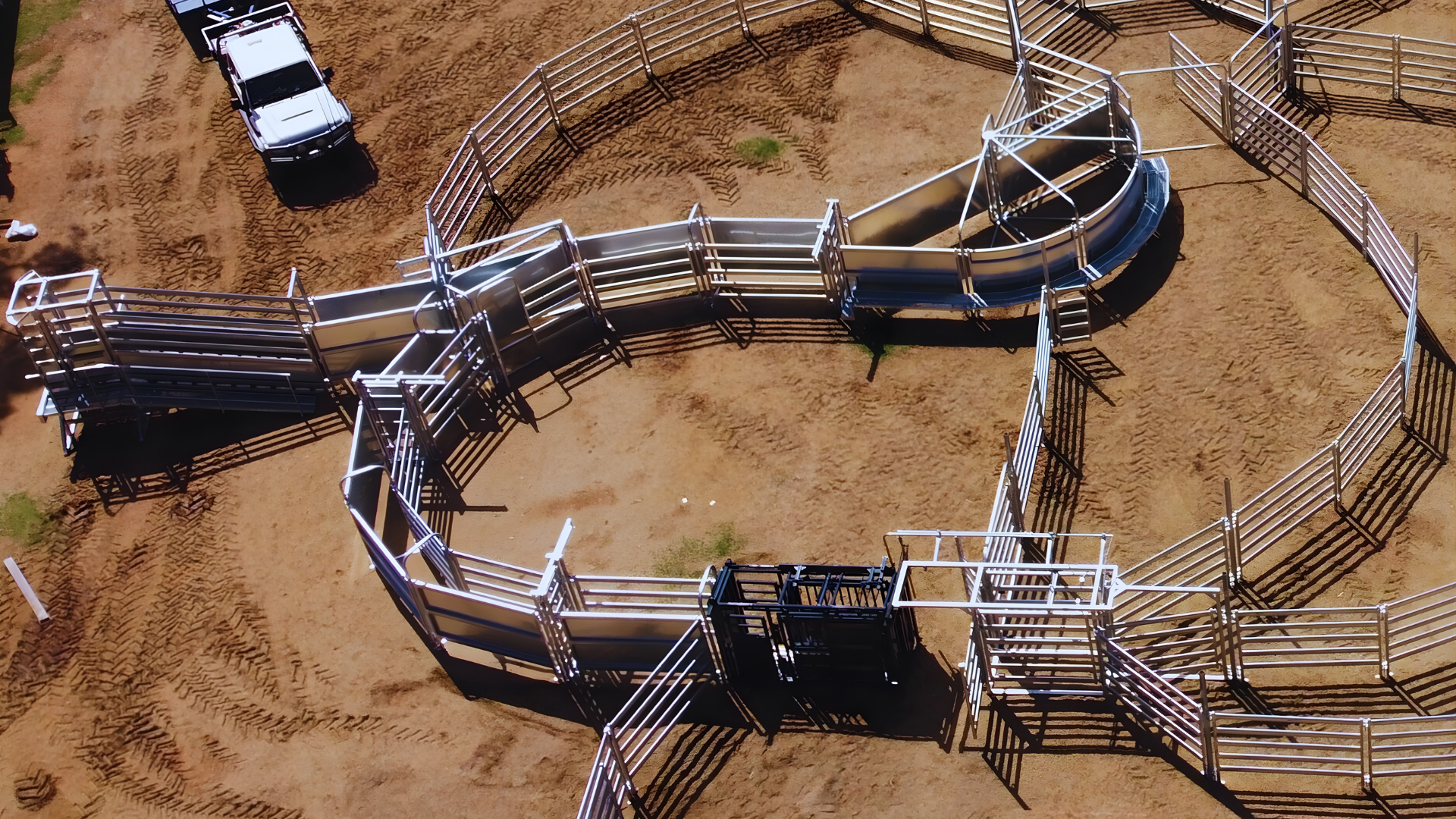

  • 5.0m Timber Floor Loading Ramp complete with:

    • Hardwood timber floor.

    • Ramp sides sheets up to 600mm.

    • Ramp side rails - 115mmx42mm rail

    • Heavy-duty front buffer.

    • Double width walkway and handrail on nearside.

    • 1.4m flat load out section with two access doors.

    • Platform, ladder and handrail offside.

    • Heavy-duty construction overall.

• Crush:

  • CIA Immobolizer Pro-Chute Crush complete with:

    • Full walk-through Mk 5 Headbail sheeted to eliminate leg injury.

    • Three individual drop-down upper side gates for concentrated access on nearside.

    • Full exit gates split horizontally on both sides.

    • Extra support bars on lower split gates.

    • Front operation of rear sliding gate assisting with single operation.

    • Front and rear operation

    • Yellow handles for operators’ visibility

    • Full walk-through vet section

    • Two-sided parallel sided squeeze

    • Anti-Backing System

    • Fully sheeted rear door

    • Grease nipples on pivot points

    • Weigh bar mounting plates.

    • Swingarm Super Scoop.

    • Timber Scanning Panel on offside.

    • Pro-chute Checker Plate Floor/Hot Dipped Galvanised.

    • Gallagher Animal Management weigh system consisting of:

      • TWR-5 weigh scale reader.

      • Pair of 5000kg Bluetooth load bars.

      • Panel antenna 600 x 400.
