Custom (CR) Design | North Albury, NSW

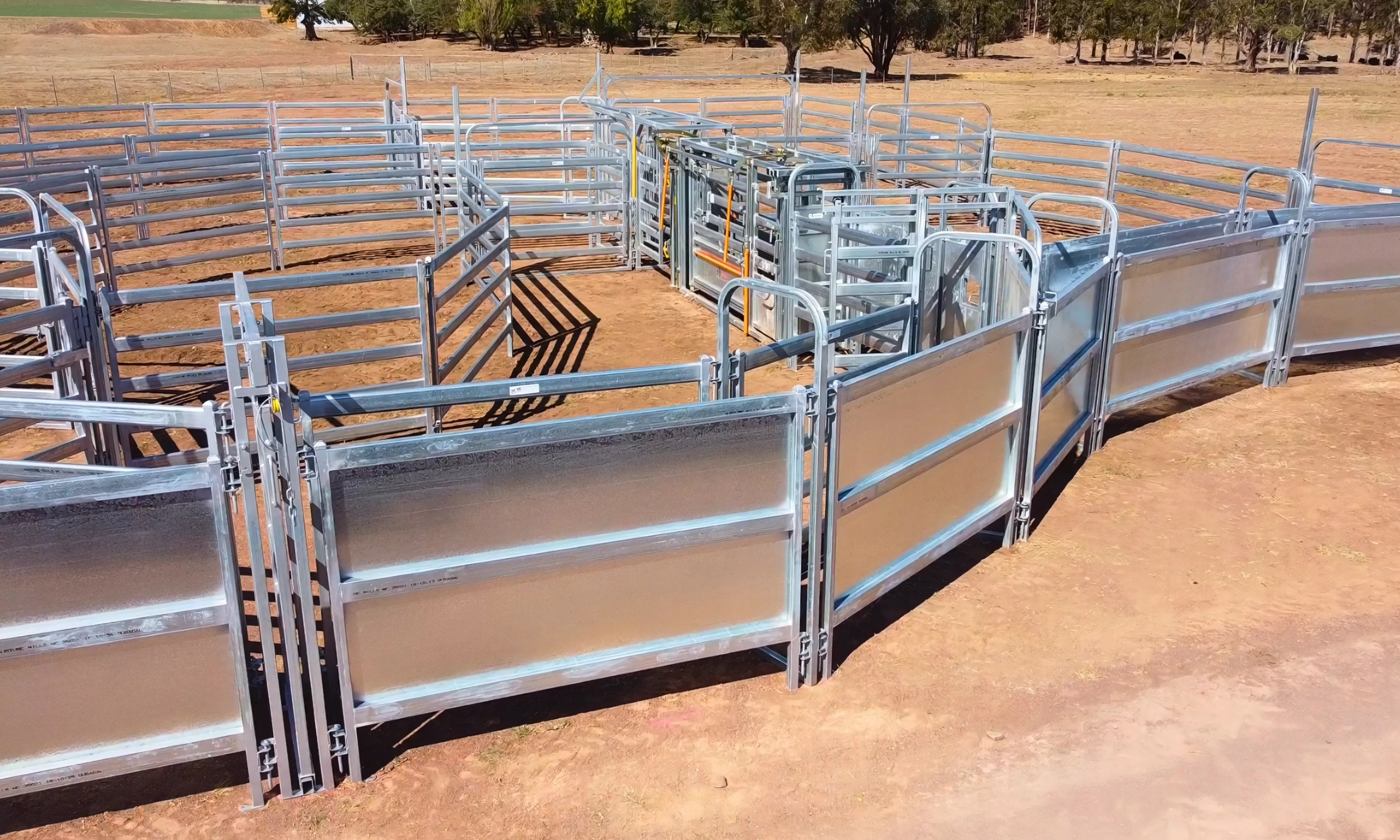

This custom yard design has a total yard area of 491m sq with an approximate working capacity of 210 head and a holding capacity of 460 head.

• Yard Components Included (all manufactured in Australian First Grade Steel - galvanised inside and outside with the highest gal coating for this type of steel on the Australian market:

  • 5 rail panels - 2.5m long x 1.7m high (115mm x 42mm rail).

  • 5 rail gates in frames - 2.5m long x 2.2m high frames (115mm x 42mm rail)

  • Our low noise cleating system.

  • Panel pins.

  • Foot pins.

  • Panels, double hinge gates, double hinge lock-up gates in the drafting pound, single hinge gates and slide gates.

• Yard Upgrades:

  • Upgraded panel posts from 1.6mm to 2.5mm thick material.

  • Upgraded gate on the rear of the force, to a single hinge gate and heavy-duty frame with a spring slam catch.

  • Forward Operation Drafting Module at the front of the crush - The drafting gates are controlled by a remote handle that extends to the operational position of the crush. This allows the operator to remain at the head of the crush whilst opening the gate. The selected gate automatically returns with the release of the handle. Two access gates are positioned forward of the drafting gates to provide an unimpeded workspace at the head of the animal.

  • Sheeted panels in the race.

• Ramp:

  • 5.0m Timber Floor Loading Ramp complete with:

    • Hardwood timber floor.

    • 1.4m flat load-out section with access door.

    • Ramp sides sheets up to 600mm.

    • Ramp side rails - 115mmx42mm rail

    • Heavy-duty front buffer.

    • Double width walkway and handrail on one side.

    • Heavy-duty construction overall.
