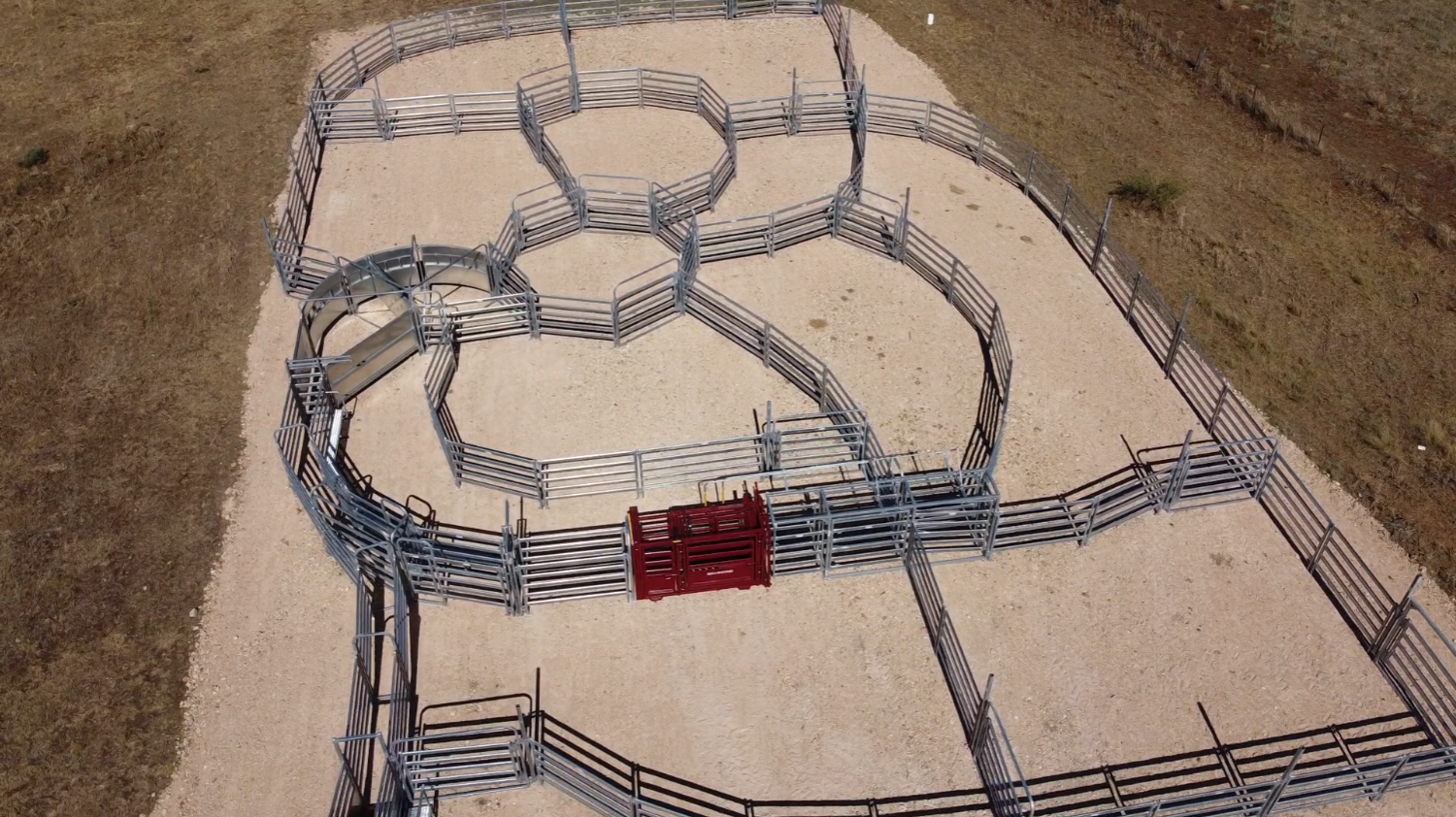

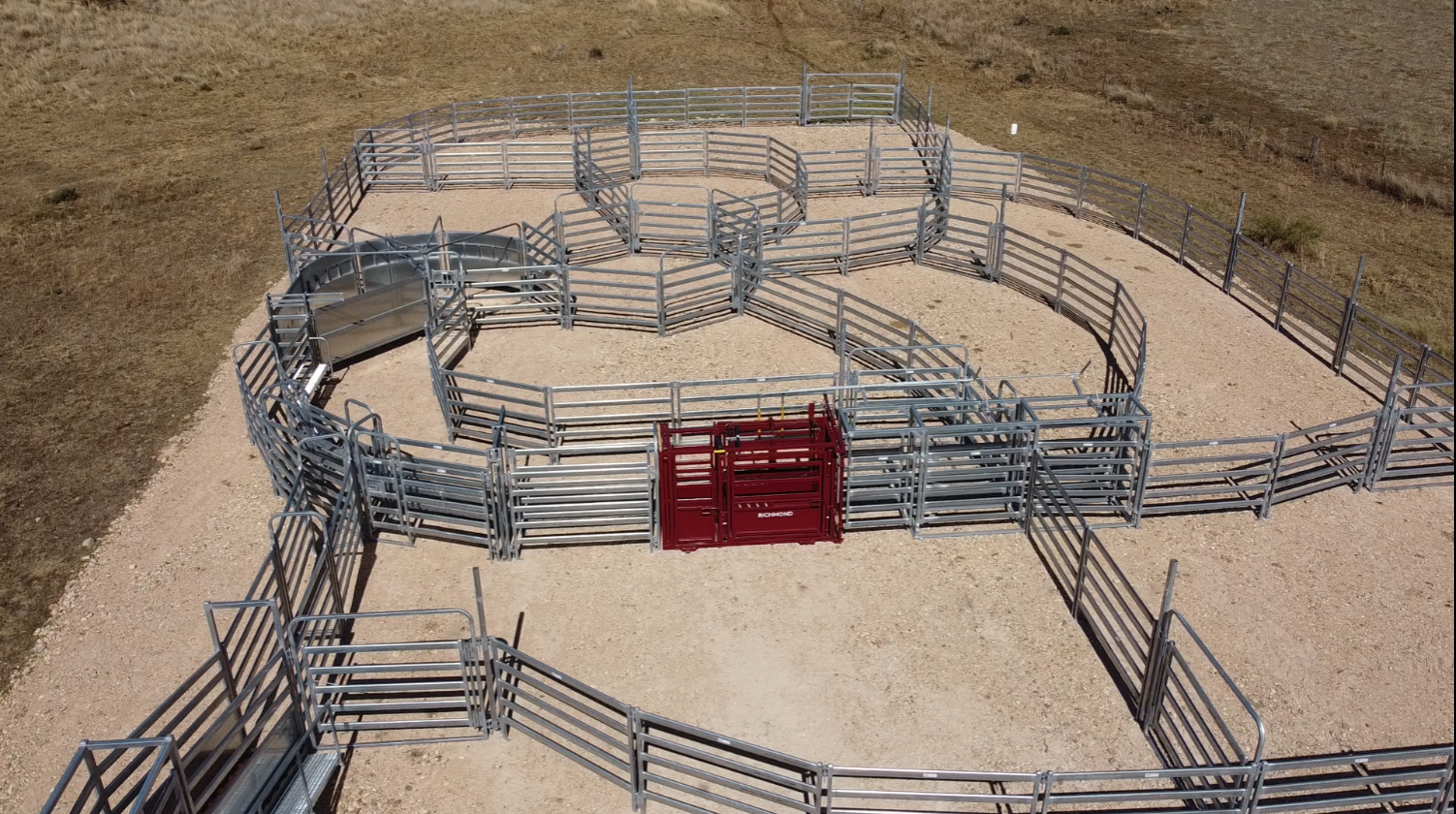

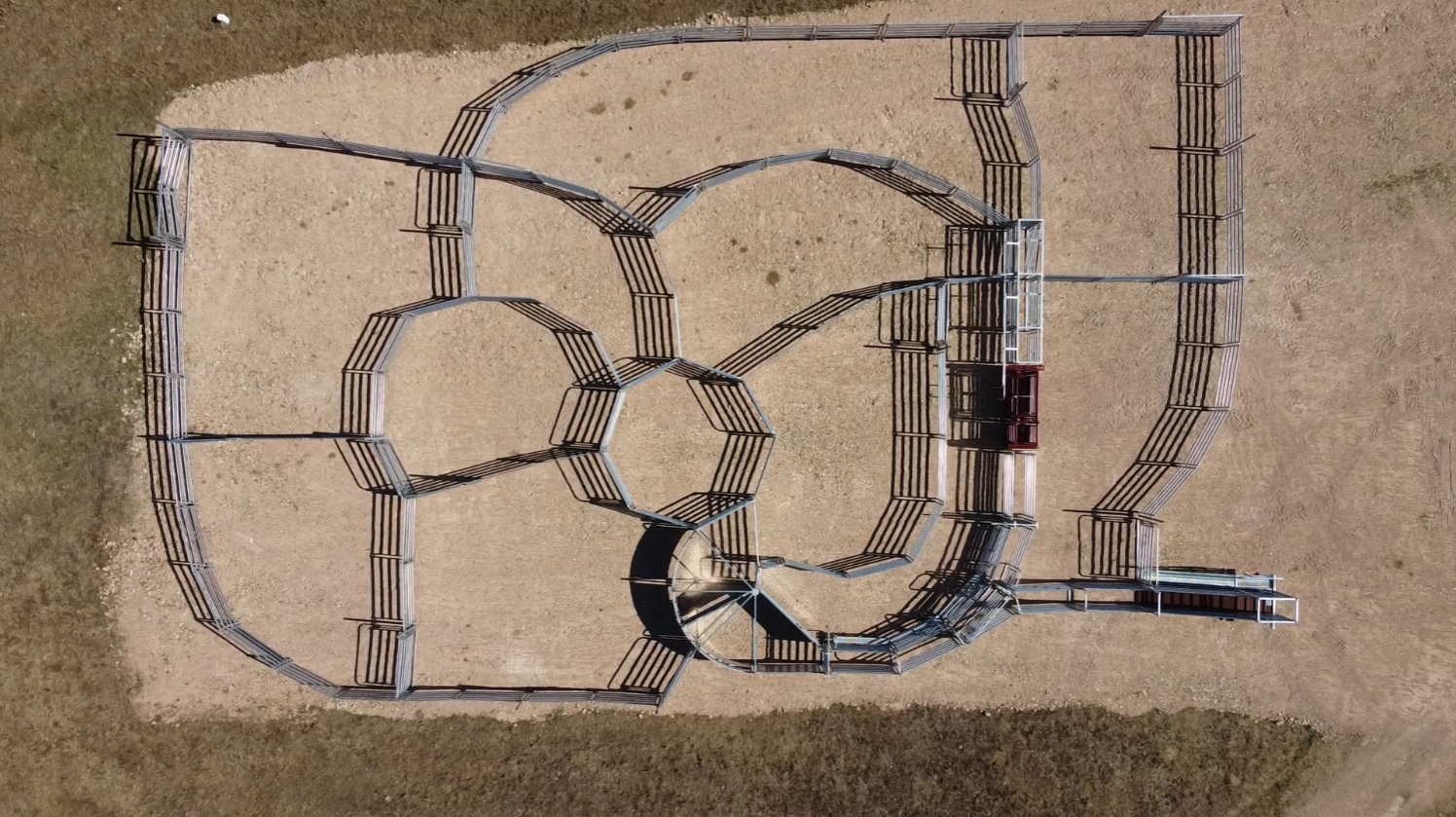

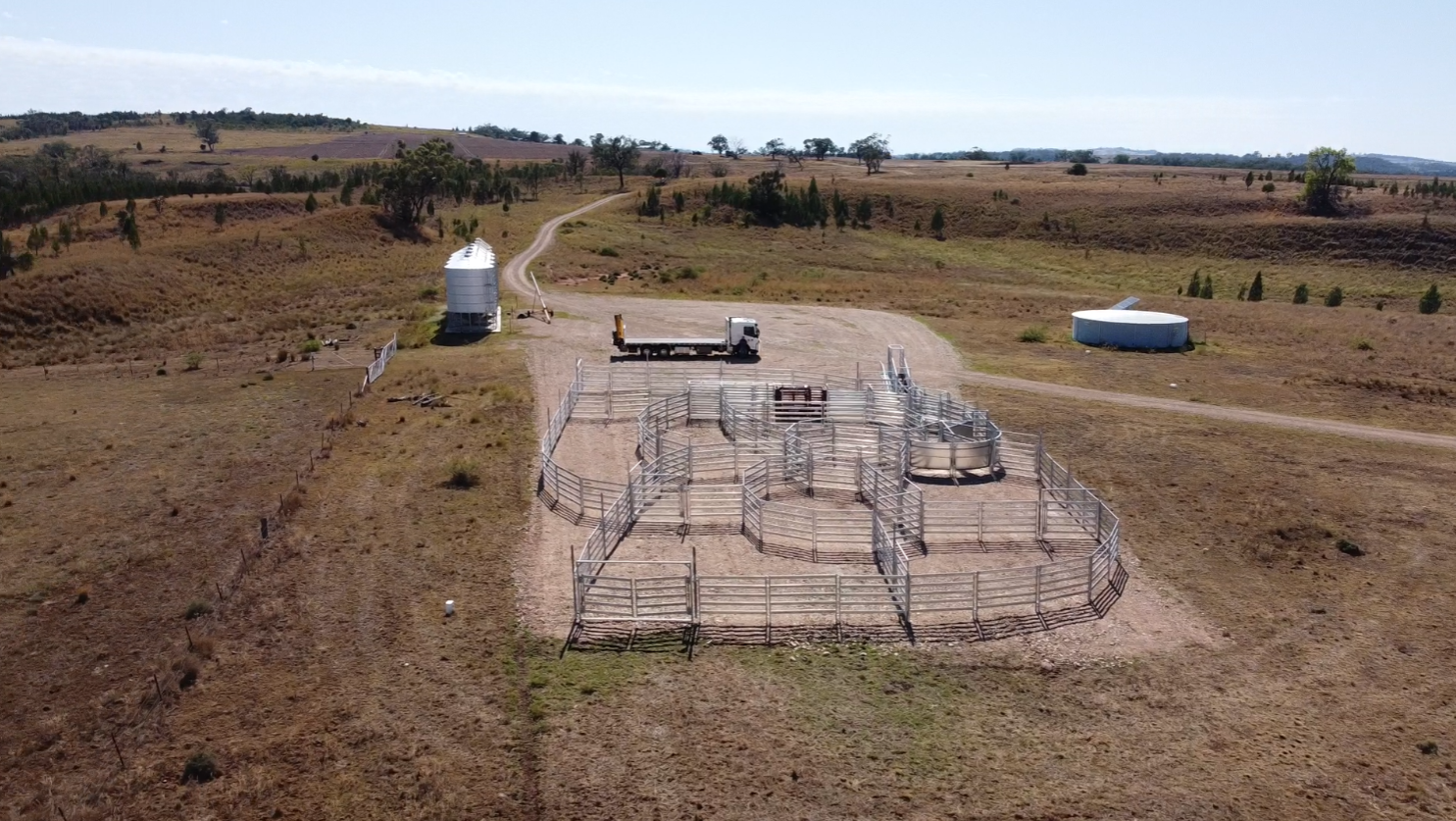

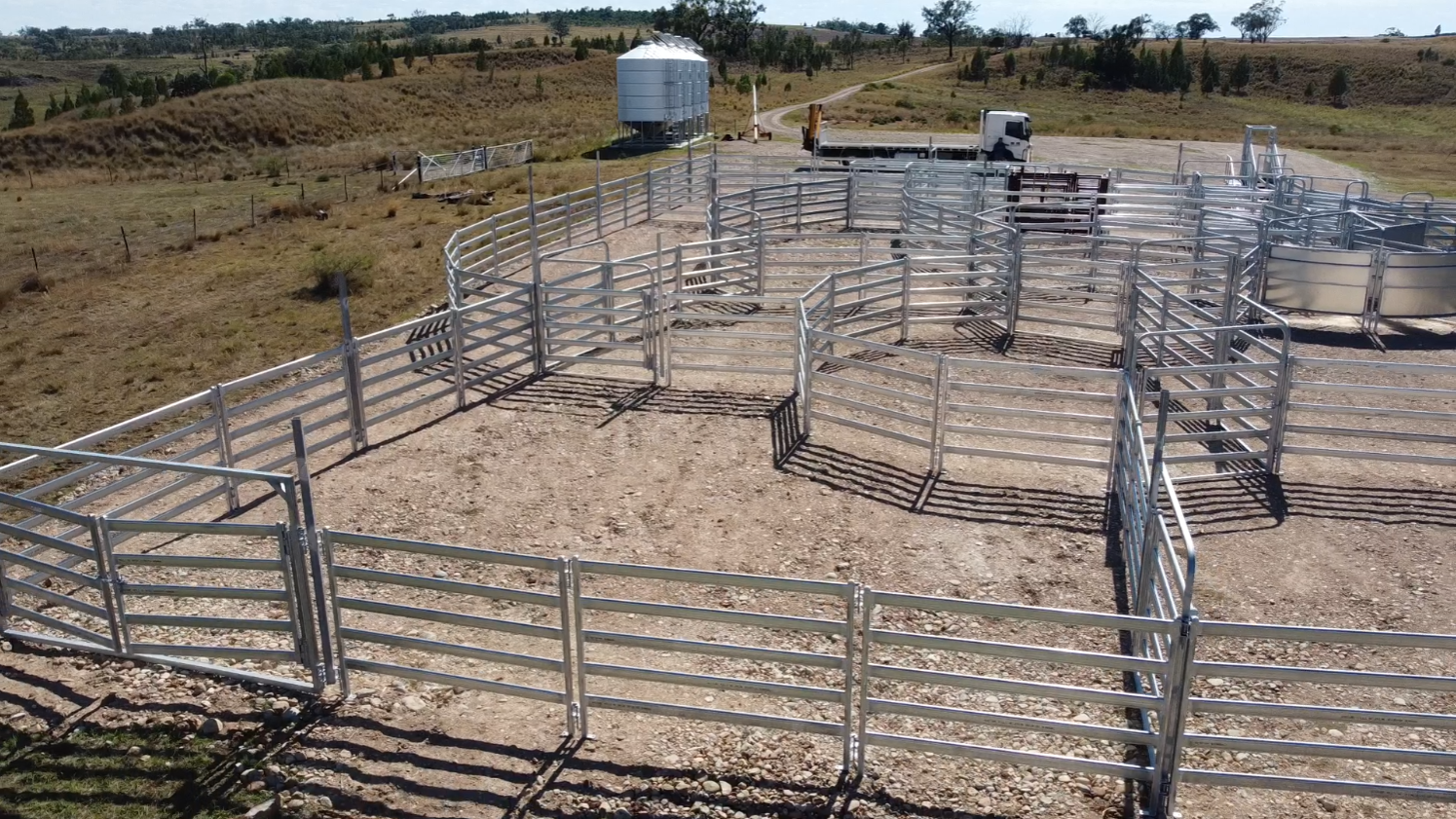

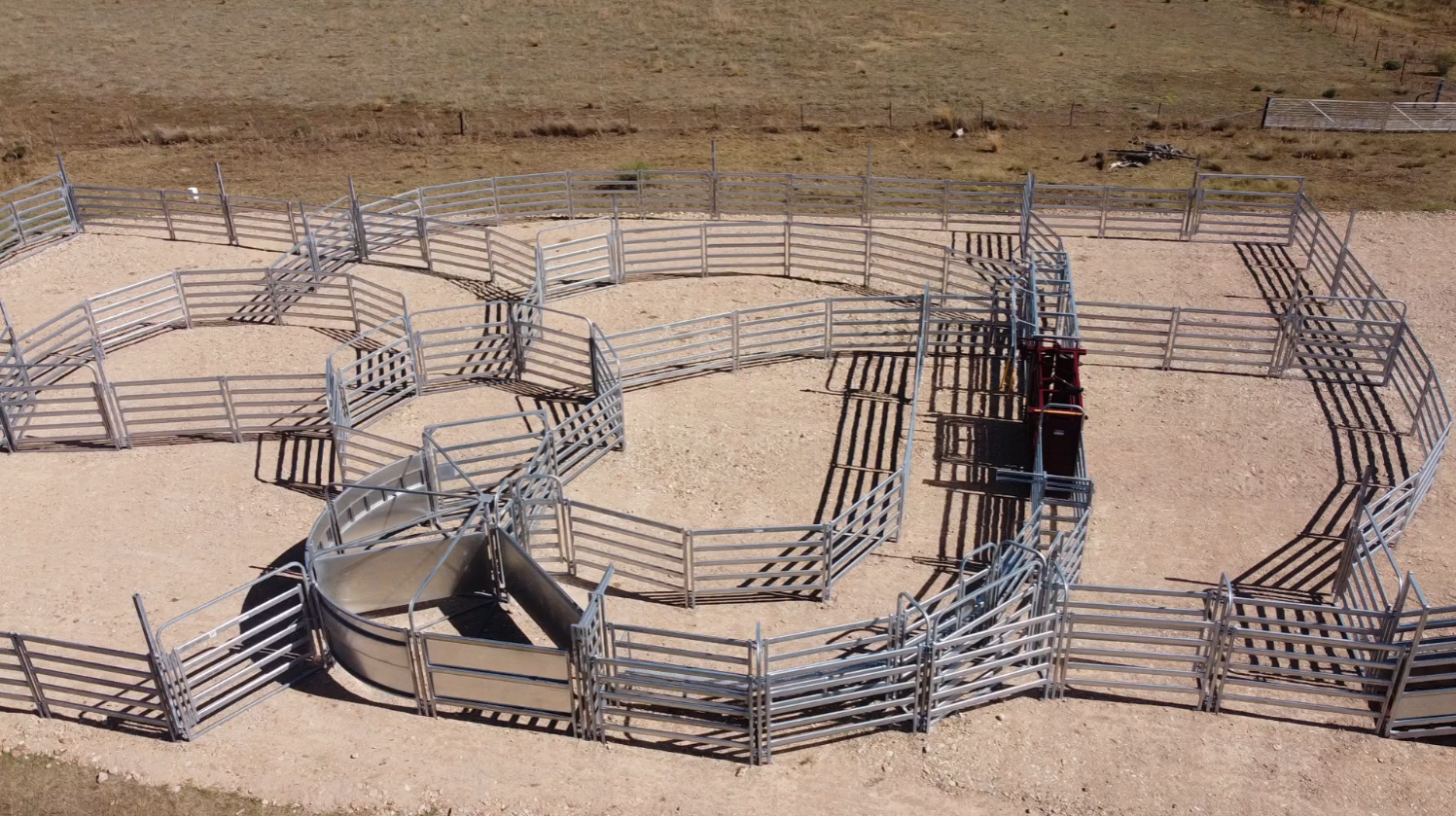

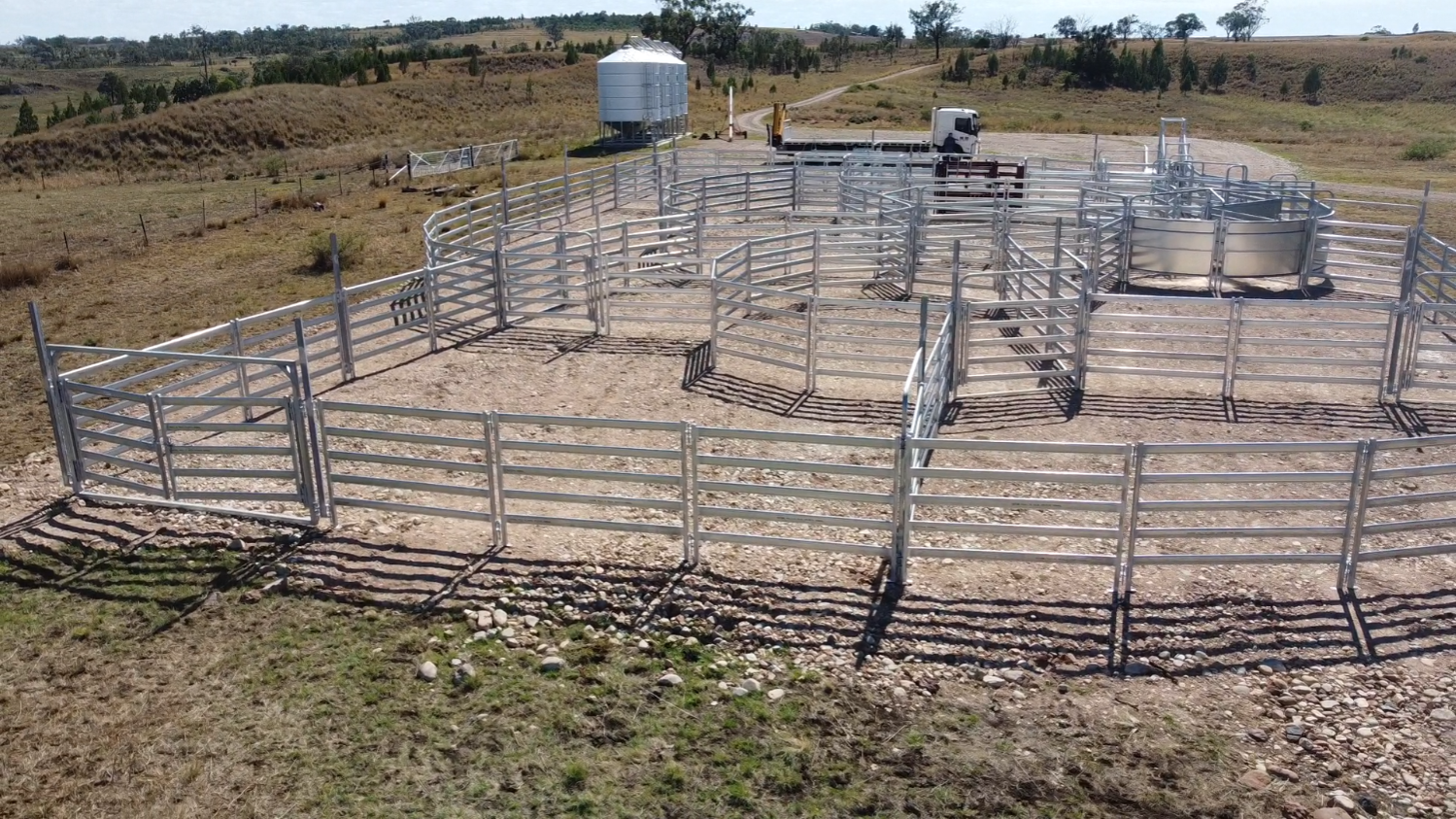

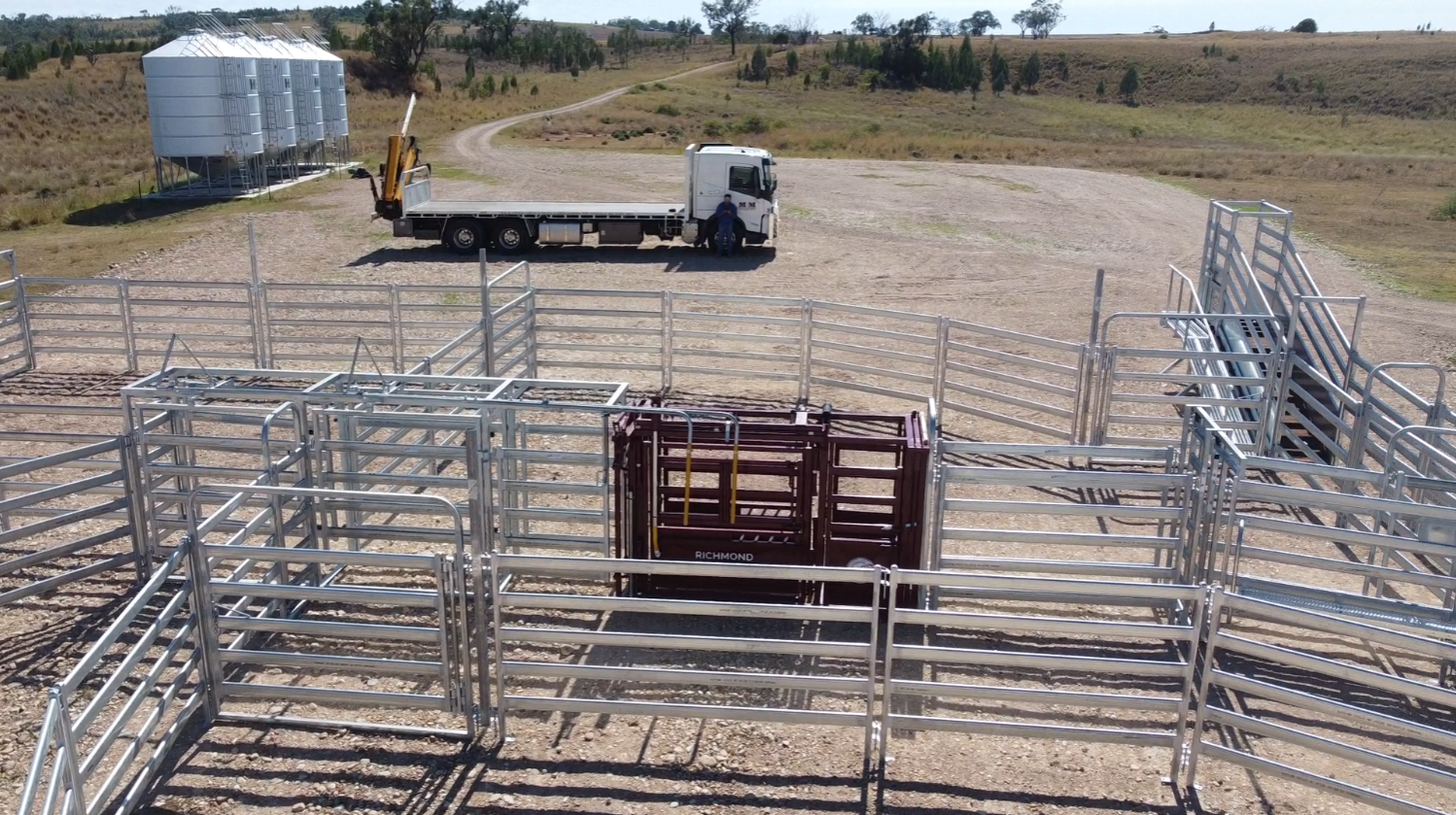

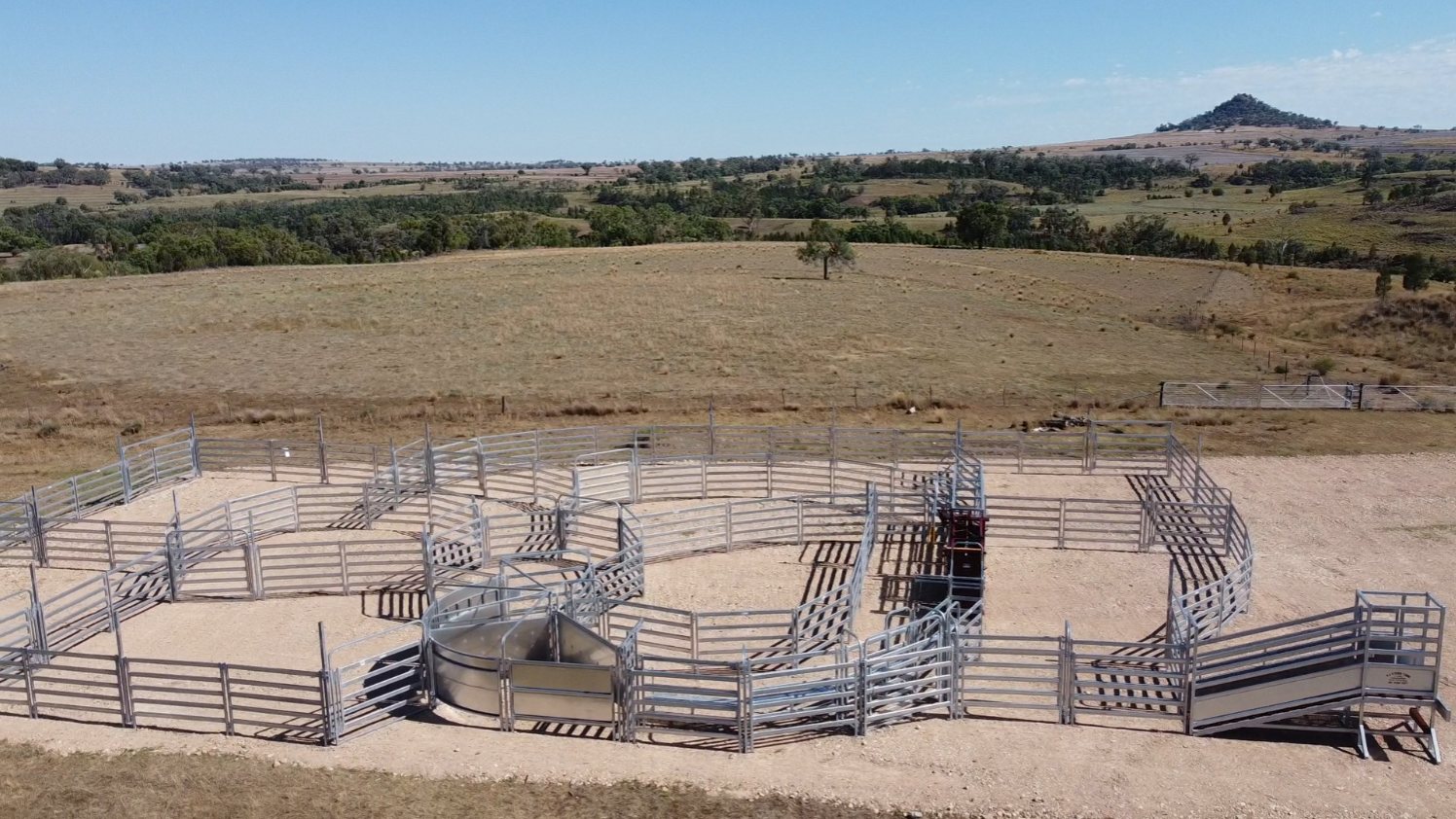

This custom designed yard system has a total yard area of 644m sq. It has a working capacity of 220 head and a holding capacity of 490 head.

Yard Components Included (all manufactured in Australian First Grade Steel - galvanised inside and outside with the highest gal coating for this type of steel on the Australian market:
- 5 rail panels - 2.5m long x 1.7m high (115mm x 42mm rail).
- 5 rail gates in frames - 2.5m long x 2.2m high frames (115mm x 42mm rail)
- Our low noise cleating system.
- Panel pins.
- Foot pins.

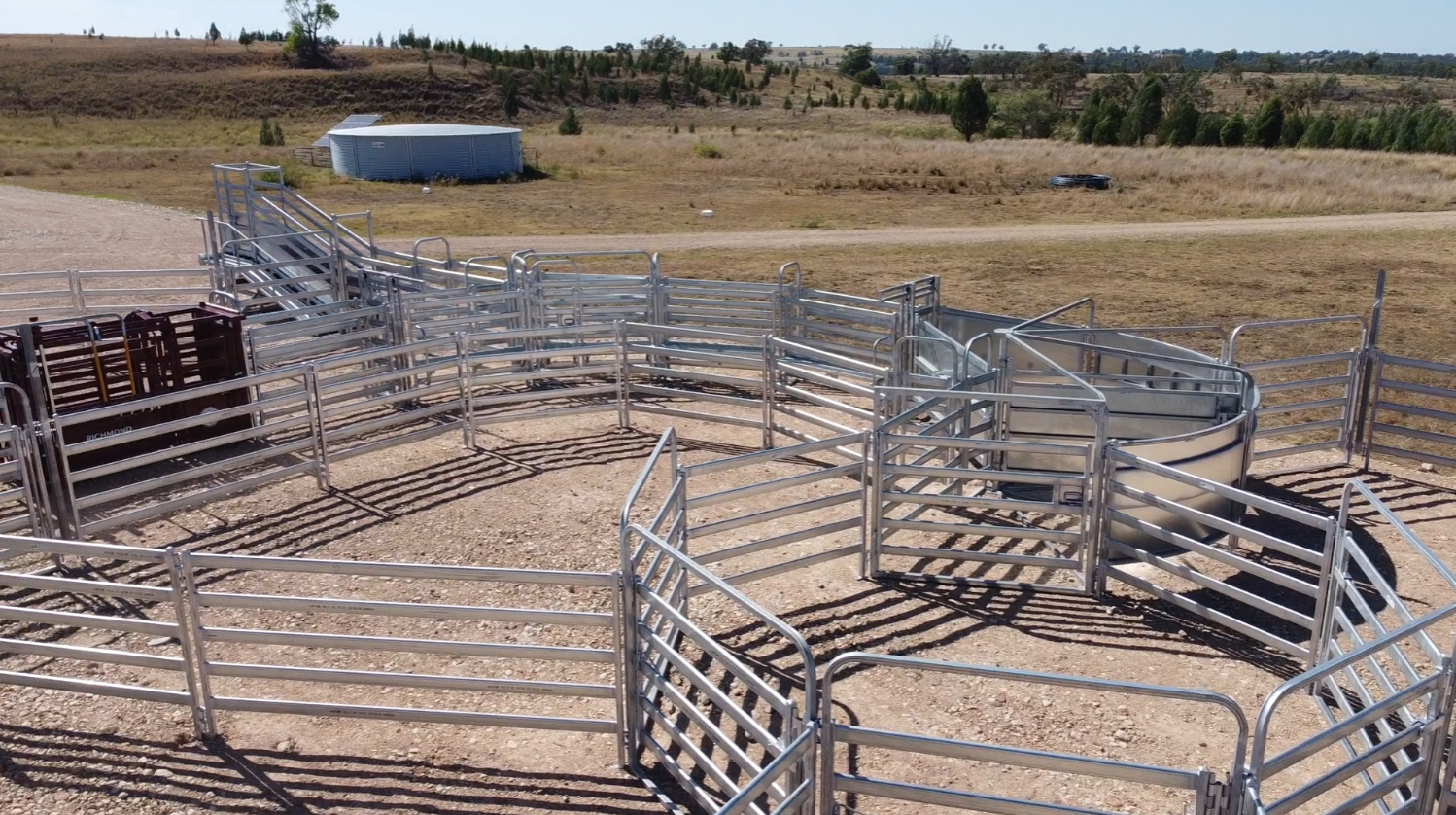

- Four Section Curved Force Yard with Ratcheting Safety Gate.
- Panels, double hinge gates, double hinge lock-up gates in the drafting pound, single hinge gates and slide gates. \

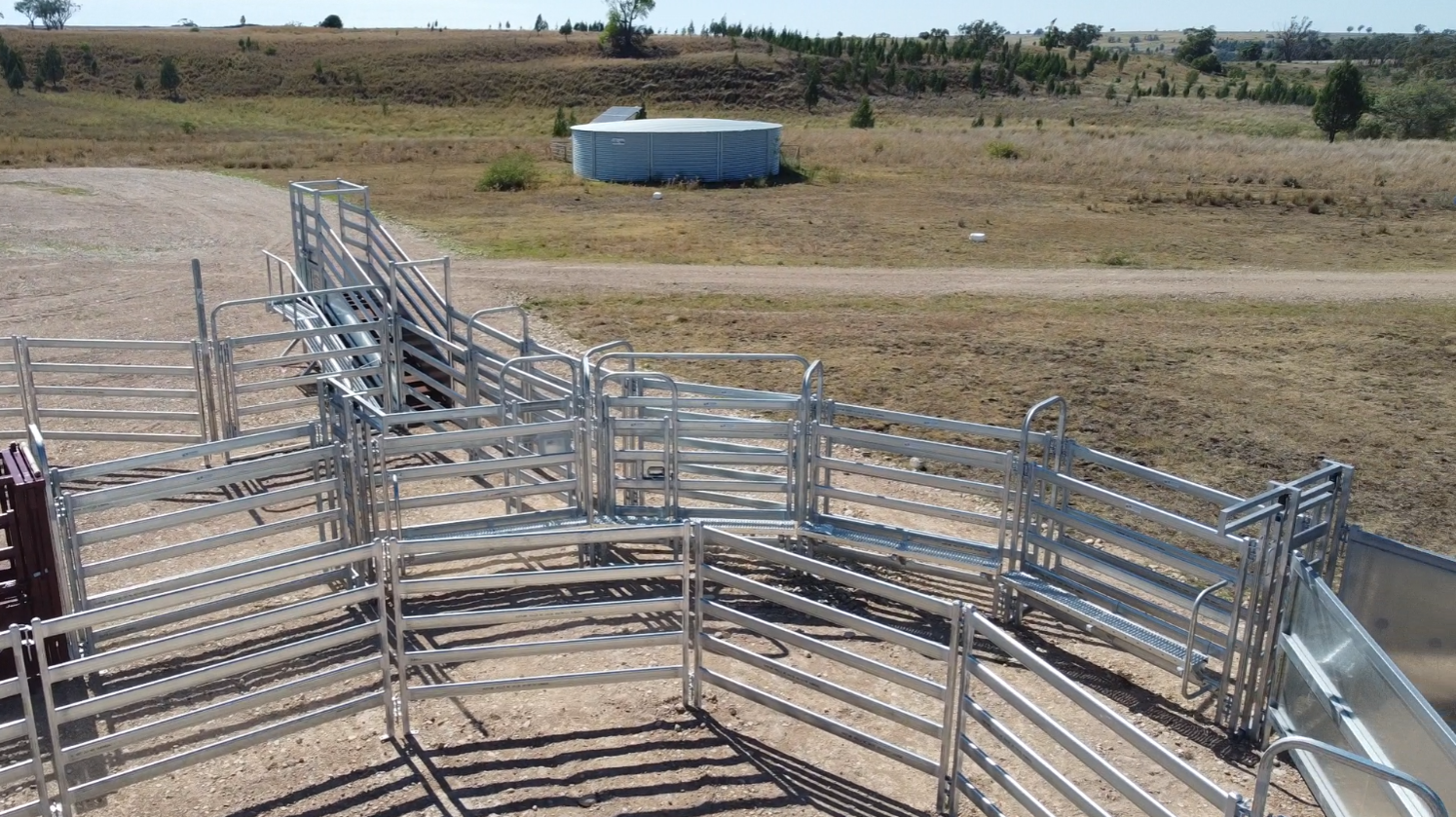

- Race Walkway
Yard Upgrades:
- Upgraded panel posts from 1.6mm to 2.5mm thick material.
- Upgraded gate on the rear of the force, to a single hinge gate and heavy-duty frame with a spring slam catch.
- Five Way Drafting Module.
Ramp:

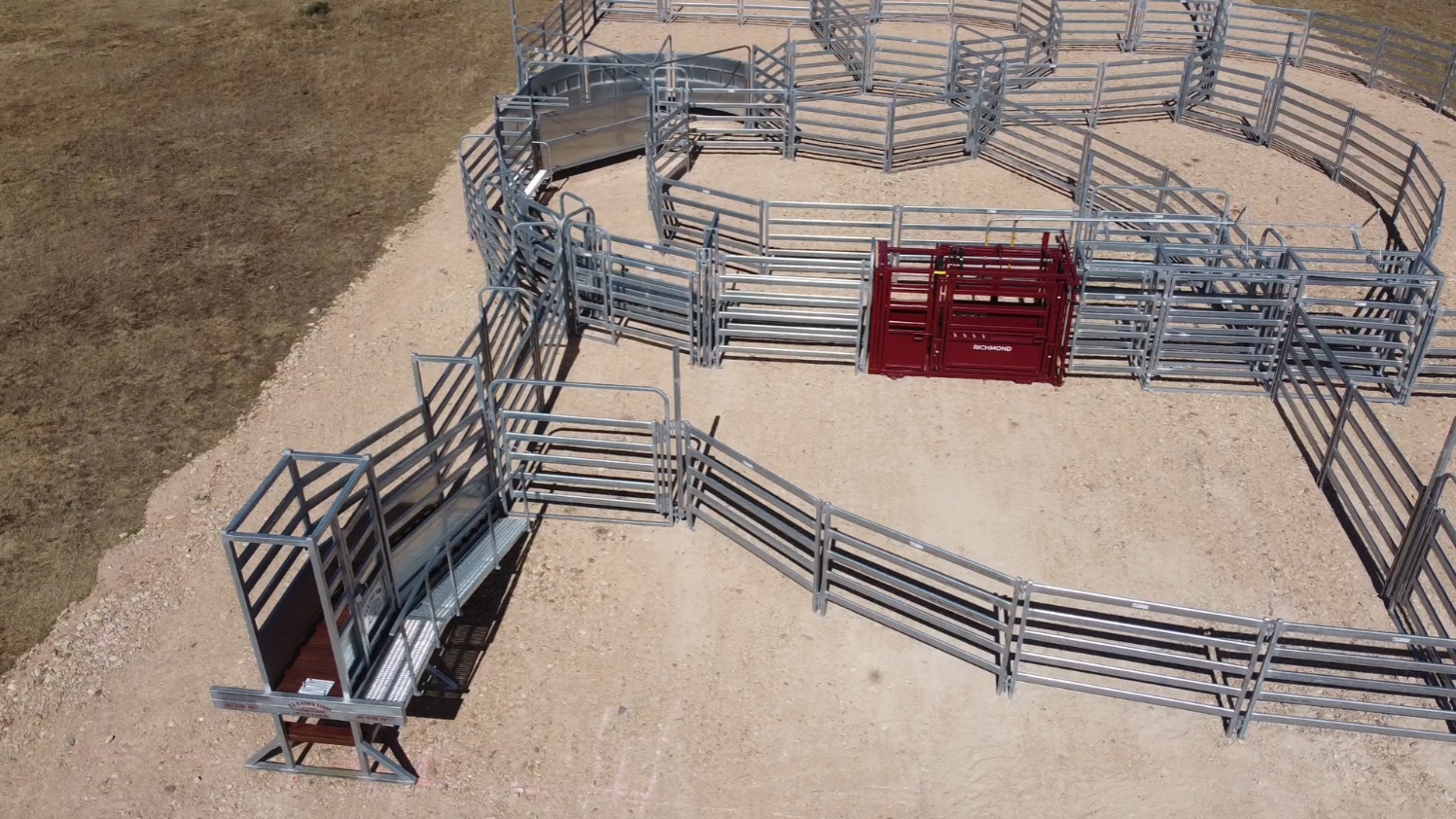

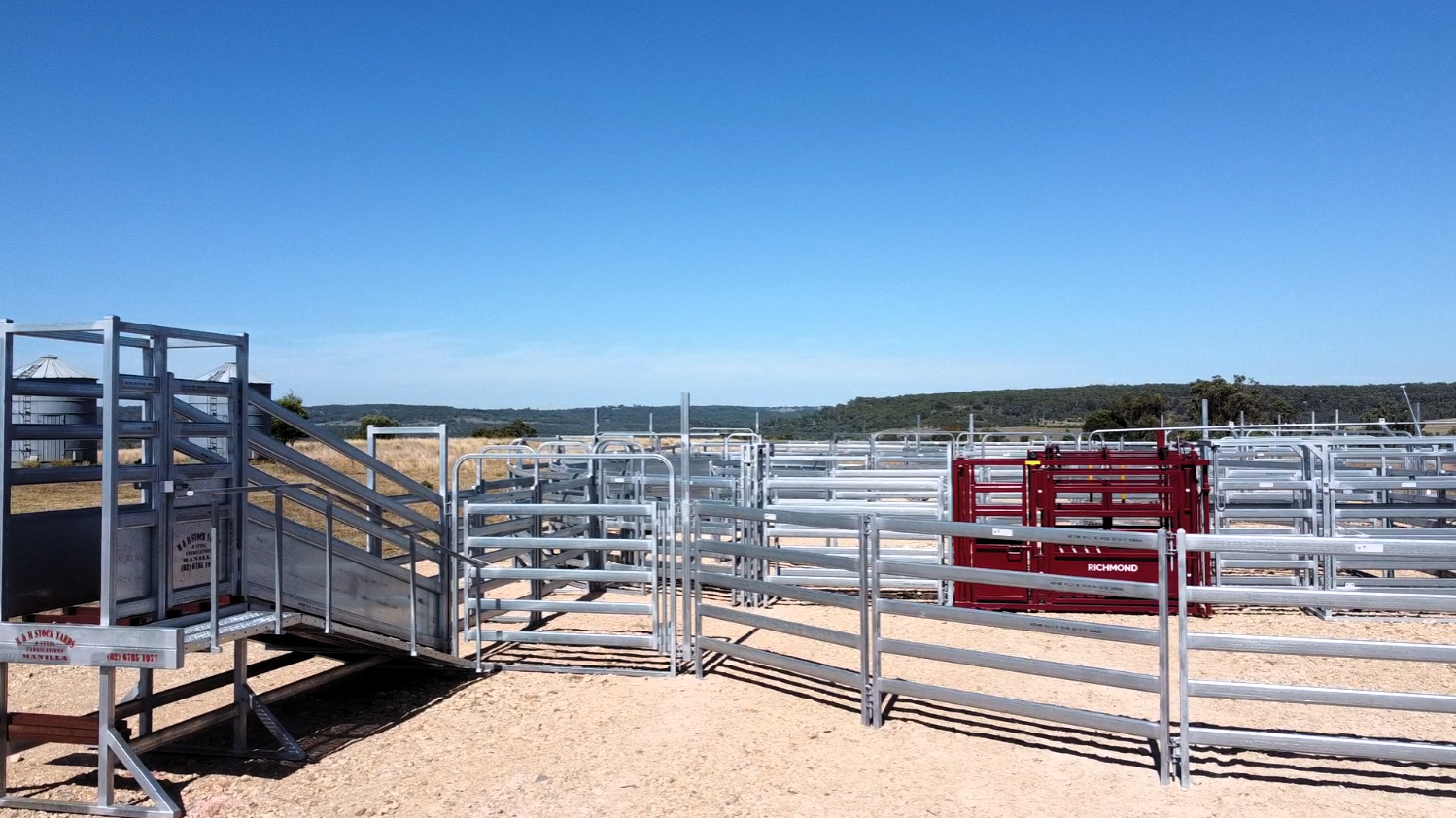

- 5.0m Timber Floor Loading Ramp complete with:
  - Hardwood timber floor.
  - 1.4m flat load out section with access door.
  - Ramp sides sheets up to 600mm.
  - Ramp side rails - 115mmx42mm rail
  - Heavy-duty front buffer.
  - Double width walkway and handrail on one side.
  - Heavy-duty construction overall
