50 Head (CR) Design | Armidale, NSW

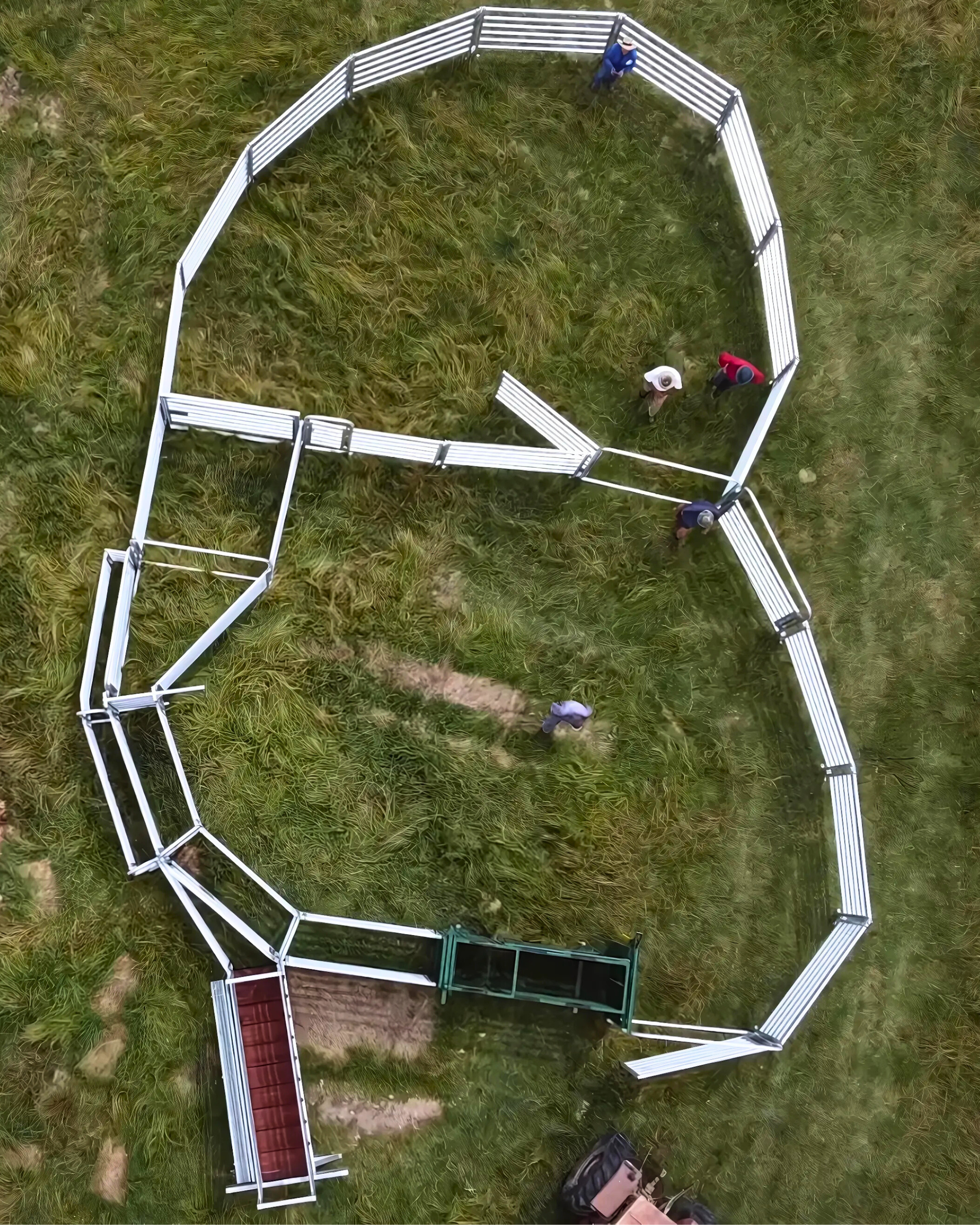

This yard system has a total area size of 156m sq. It is has a working capacity of 50 head and a holding capacity of 120 head.

• Yard Components Included (all manufactured in Australian First Grade Steel - galvanised inside and outside with the highest gal coating for this type of steel on the Australian market:

  • 6 Rail Panels - 2.5m long - 1.7m high (50 x 50).

  • 6 Rail Gates in frames - 2.5m long - 2.2m high frames (50 x 50).

  • Our low noise cleating system.

  • Panel pins.

  • Foot pins.

  • Panels, double hinge gates, single hinge gates, slide gates.

  • Calf race.

• Yard Upgrades:

  • Upgraded panel posts from 1.6mm to 2.5mm thick material.

  • Upgraded gate on the rear of the force, to a single hinge gate and heavy-duty frame with a spring slam catch.

• Ramp:

  • 3.6m Timber Floor Loading Ramp complete with:

    • Hardwood timber floor.

    • Ramp sides sheets up to 600mm.

    • Ramp side rails - 115mmx42mm rail.

    • Heavy-duty front buffer.

    • Double width walkway and handrail on one side.

    • Heavy-duty construction overall.

• Crush:

  • CIA Ringer Pro-Chute Crush complete with:

    • Full walk-through Mk 5 Headbail sheeted to eliminate leg injury.

    • Full exit gates split horizontally on working side.

    • Front and rear operation.

    • Yellow handles for operators’ visibility.

    • Full walk-through vet section.

    • ¾ sheeted rear door.

    • Weigh bar mounting plates.
